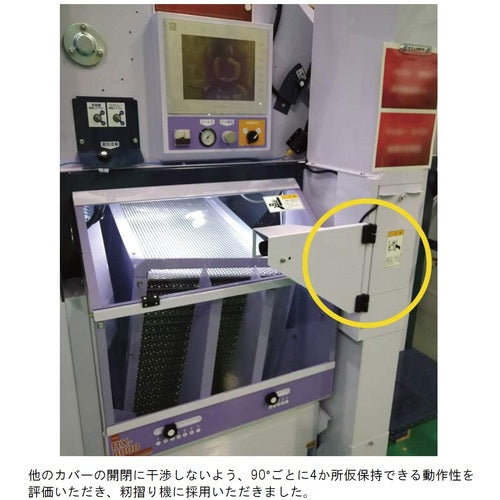

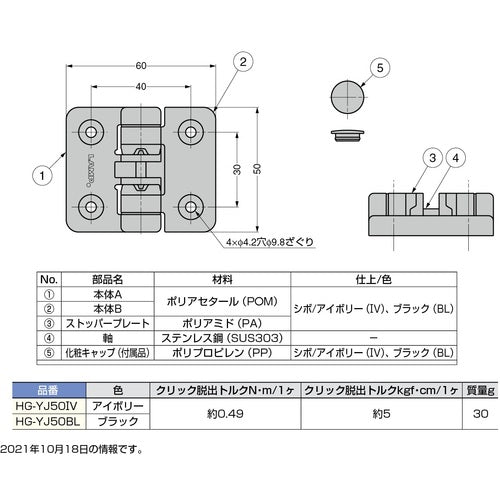

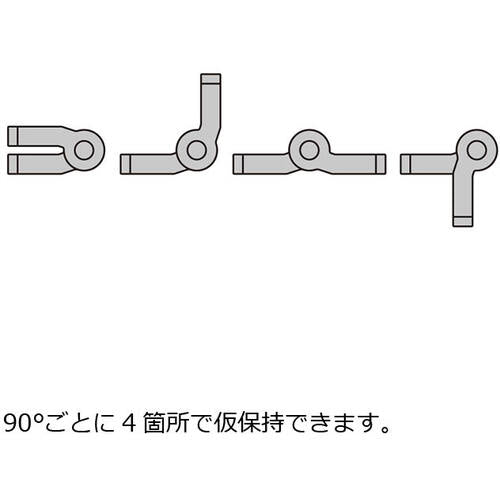

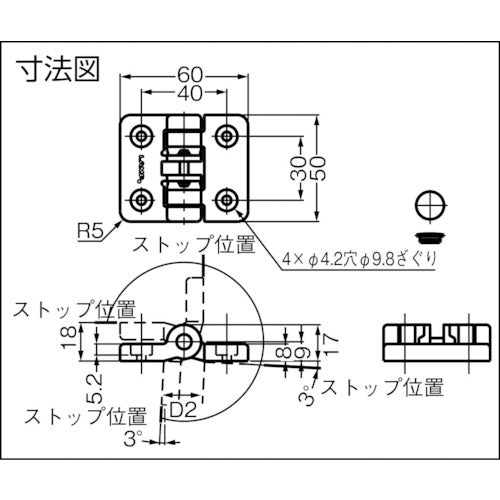

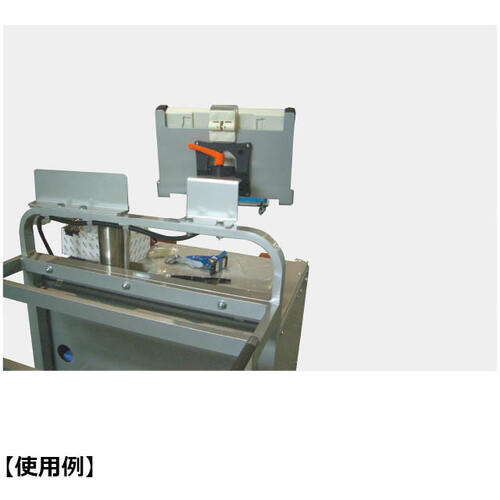

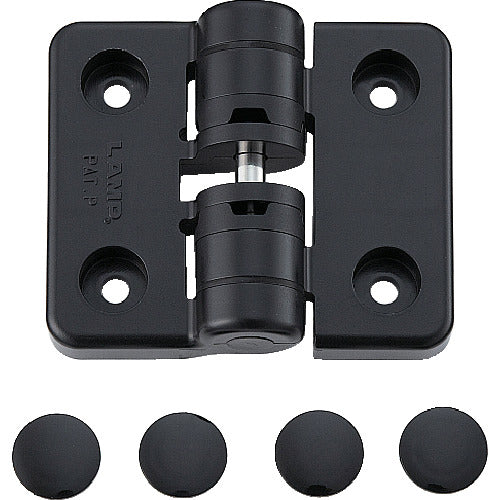

Catalog number: HG-YJ50BL Features: ●Can be temporarily held at 4 points every 90°. ●Can separate plastic parts from metal parts. ●Comes with a cap to hide the screws. ●Caps only (ivory: KD-772-3I, black: KD-772-3B) are also available. Applications: ● Plastic door panels and small sheet metal doors for medical equipment, measuring equipment, food machinery, etc. Specifications: ● Overall length (mm): 50 ● Width (mm): 60 ● Thickness (mm): 8 ● Number of screw holes: 4 ● Hole diameter (mm): 4.2 ● Color: Black ● Load capacity (kg) when using 2 units: 1.2 ● D2 (mm): 17 ● Rated torque (N・m): 0.49 ● Initial setting release torque: Approximately 49 N･cm/unit ● Load capacity guideline: Door width 400mm or less x door height 500mm or less, door weight 1.2kg or less *When using plastic door panels and 2 units vertically Materials/Finish: ● Body: Polyacetal grain ● Shaft: Stainless steel (SUS303) ● Cap: Polypropylene Caution: ● There is variation in the click release torque. ● This is not a guaranteed value. ● Do not stop the door for long periods of time in any position other than the stop position (hold). ● Please check the actual product before use.
