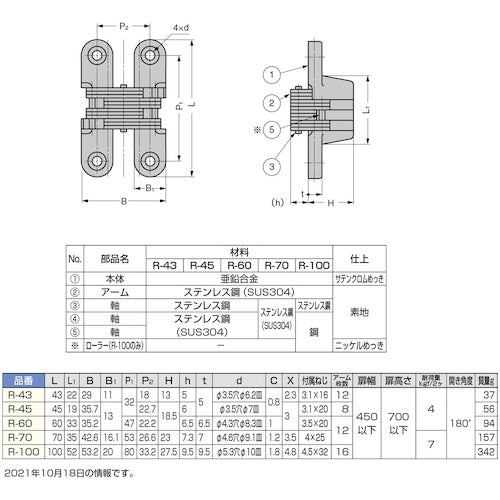

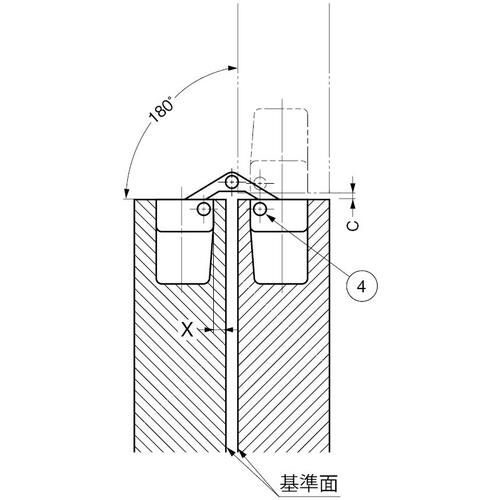

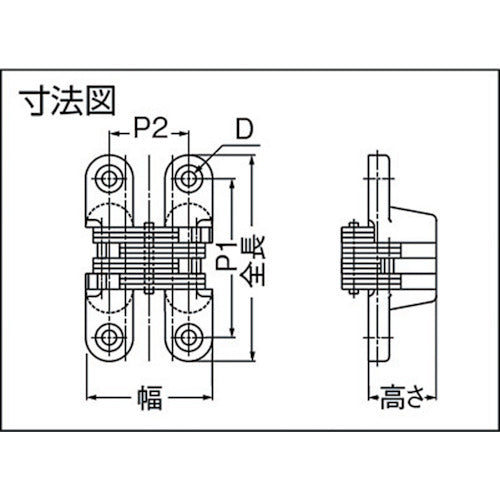

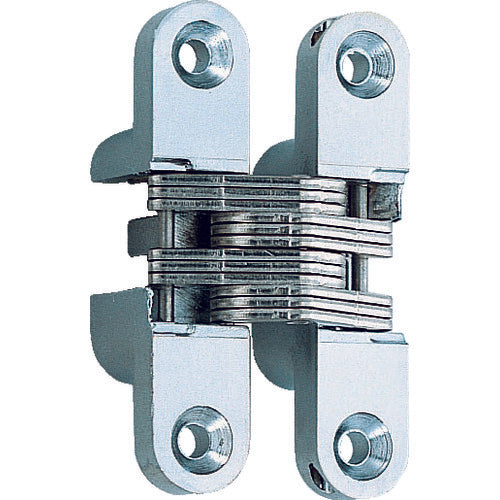

Catalog number: R-60 Features: ●The arm is made of rust-resistant stainless steel (SUS304), providing sufficient strength and corrosion resistance. ●Only the R-100 uses rollers for the guide pin, ensuring smooth movement even under high load. Applications: ●Thick doors, doors with large plate thickness. Specifications: ●Total length (mm): 60 ●Width (mm): 35.2 ●Number of screw holes: 4 ●Height (mm): 18.5 ●P1 (mm): 47 ●P2 (mm): 22.2 ●Opening angle (°): 180 ●Capacity (L): 60 ●Bottom dimensions (mm): 700 x 410 ●φD (mm) top: 8.3 ●φD (mm) bottom: 4.3 ●Opening angle 180° Material/Finish: ●Body: Zinc alloy ●Arm: Stainless steel (SUS304) Set contents/Accessories: ●Cross-recessed countersunk wood screws (stainless steel) Note: ●*Please make sure the dimension to the edge of the door is no more than X mm. ●The image is of a product in the same series and the appearance may differ from that of this product number.
