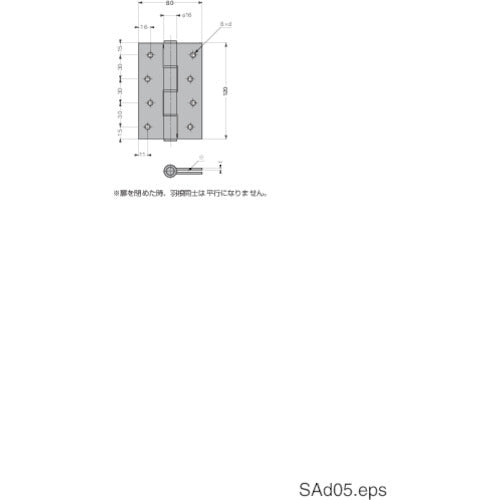

Catalog number: SA120-5314-01 Features: * The door closes automatically with the force of the spring. * The spring strength can be adjusted. * The stainless steel version is made of stainless steel (SUS304), including the shaft and spring. * When used in combination with a hinge without a spring, the strength can be further adjusted. ●White, gold and bronze finishes and R10 chamfering are available upon request (minimum order quantity: 2 units) Specifications: ●Total length (mm): 120 ●Width (mm): 80 ●Thickness (mm): 4 ●Number of screw holes: 2 ●Length (mm): 120 ●P1 (mm): 15 ●P2 (mm): 30 ●t (mm): 4 ●Door width (mm): 1000 or less ●Load capacity (N/2 units): 196 ●Load capacity (N/3 units): 294 ●Load capacity (kgf/3 units): 30 ●d (mm): φ5.3 hole φ10 countersunk ●Load capacity (kgf/2 units): 20 ●Type: Spring hinge ●Blade thickness (mm): 4 Material/Finish: ●Aluminum alloy Caution: ●If noise is heard during use, apply lubricant (grease) to the washer and built-in torsion spring. ●Please check the actual product as there are variations in mounting hole pitch dimensions.
