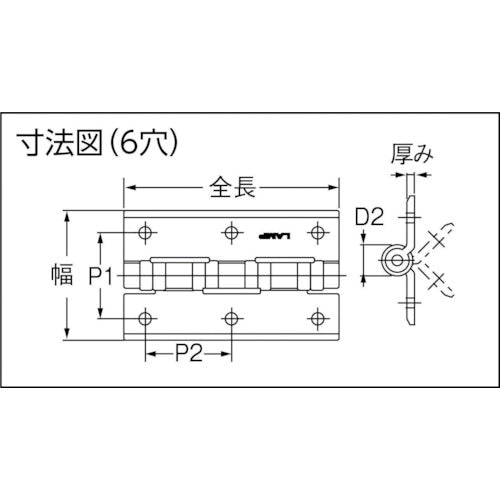

Catalogue number: HG-CV100 Features: ●The sliding parts are covered with a resin cap to prevent wear and scattering of metal powder due to metal-to-metal contact. ●The resin cap is shaped so that it does not interfere with the housing when the door is opened or closed. ●The resin cap protects the hinge in the event of light contact. ●The precision type has a small clearance between the hinge blades, resin cap, and shaft. Applications: ●Semiconductor manufacturing equipment-related ●Clean rooms ●Aluminum frames ●Household facilities, etc. ●Food machinery, household facilities, etc. Specifications: ● Total length (mm): 100 ● Width (mm): 60 ● Thickness (mm): 3.5 ● Number of screw holes: 6 ● Hole diameter (mm): 5.5 ● Load capacity (kg) when using 2 hinges: 23 ● Installation method: Screw (sold separately) ● Surface treatment: Silver anodized finish ● D2 (mm): 14 ● Round hole type Material/Finish: ● Body: Aluminum alloy ● Shaft: Stainless steel (SUS303) ● Cap: Polyacetal Note: ● Load capacity is the value when using 2 hinges.
