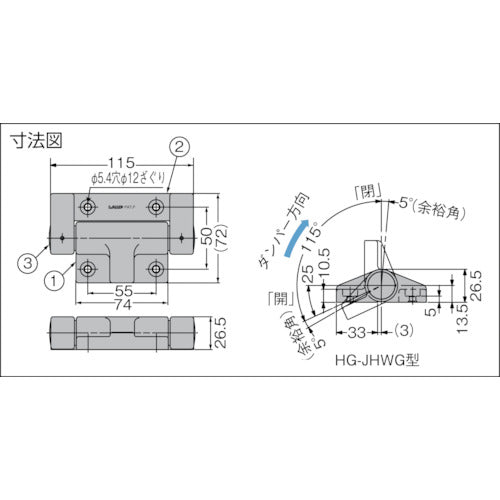

Catalogue number: HG-JHW50G Features: ● A flat hinge type damper hinge incorporating the RAPCON damper hinge UDH type. ● The damper direction and the opposite movement are also smooth. Applications: ● Top lids and top covers for various housings, etc. Specifications: ● Total length (mm): 115 ● Width (mm): 72 ● Thickness (mm): 26.5 ● Number of screw holes: 4 ● Hole diameter (mm): 5.4 ● Type: Control direction: Opening direction ● Color: Black ● Torque (N・m): 3 to 5 ● Damper direction: Opening direction ● Control direction: Opening direction Material/Finish: ● Main body: PBT resin and others (dimension diagram [1] and [2]) ● Cap: Polypropylene (dimension diagram [3]) Caution: ● To prevent the door from rotating beyond the specified rotation range, install a stopper such as a stay at the open and closed positions of the door (within a rotation angle of 0° to 115°) ● The axis centers of the hinges should be horizontal and installed so that they do not shift.
