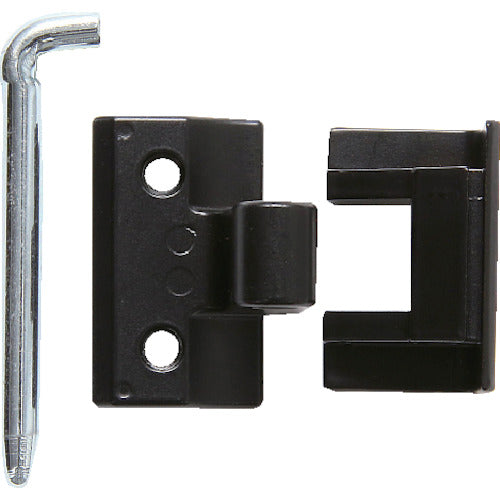

SUGATSUNE (170200380) 212-9013 / 180° Opening Insertion/Removal Hinge Opening Angle 180° 212-9013 1 pc

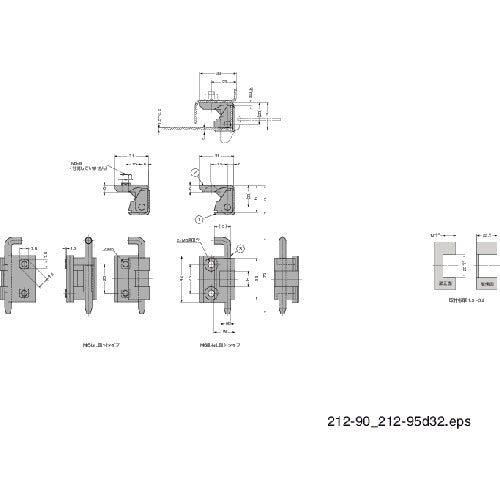

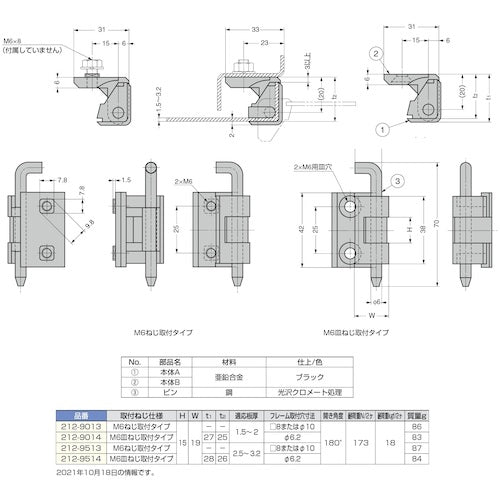

Catalog number: 212-9013 Features: ●Used for two-point locking. ●The dual roller seat (sold separately) attached to the frame pulls in the rollers, creating a compression function that tightens the entire door evenly and powerfully. ●By using it in conjunction with a 212-type hinge, the door itself can be made to be left or right-handed. Applications: ●For cover doors Specifications: ●Total length (mm): 70 ●Number of screw holes: 2 ●Hole diameter (mm): M6 ●Load capacity (kg) when using two units: 18 ●Compatible board thickness (mm): 1.5 to 2 ●Frame mounting hole dimensions: □8 or φ10 ●Opening angle (°): 180 ●H (mm): 15 ●Length (mm): 42 ●Opening: left and right ●Height (mm): 70 ●W (mm): 19 ●Removable type ●Blade board thickness (mm): 6 ●Minimum compatible board thickness (mm): 1.5 ●Maximum compatible board thickness (mm): 2 Material/Finish: ●Zinc alloy
