SUGATSUNE (170200381) 212-9014/180° Opening Insertion/Removal Hinge Opening Angle 180° 212-9014 1 pc

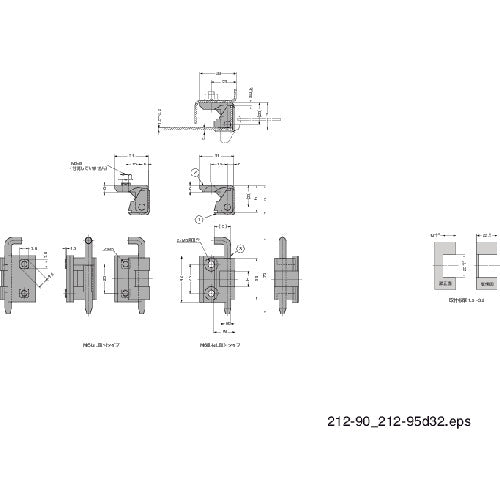

Catalog number: 212-9014 Features: * Used for two-point locking. * The dual roller seat (sold separately) attached to the frame draws in the rollers with a compression function that tightens the entire door evenly and powerfully. * By using it in combination with a 212-type hinge, the door itself can be made to be left-right oriented. Use: For cover doors Specifications: Total length (mm): 70 Thickness (mm): 27 Number of screw holes: 2 Hole diameter (mm): M6 Load capacity (kg) when using 2 pieces: 18 Suitable plate thickness (mm): 1.5-2 Frame mounting hole dimensions: φ6.2 Opening angle (°): 180 t1 (mm): 27 t2 (mm): 25 H (mm): 15 Length (mm): 42 Opening: Left and right W (mm): 19 Height (mm): 70 Insertable/removable type Blade plate thickness (mm): 6 Minimum suitable plate thickness (mm): 1.5 Maximum suitable plate thickness (mm): 2 Material/Finish: Zinc alloy
