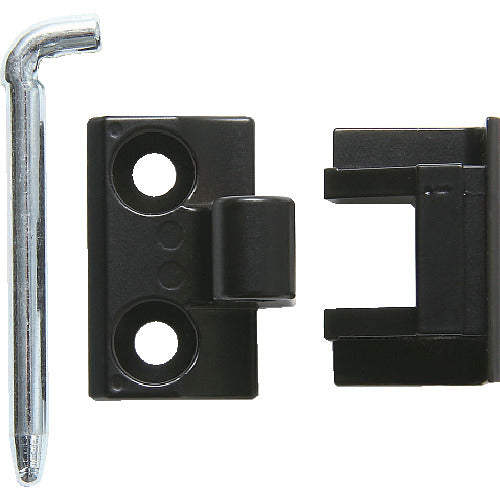

SUGATSUNE (170200400) 212-9514/180° Opening Insertion/Removal Hinge Opening Angle 180° 212-9514 1 pc

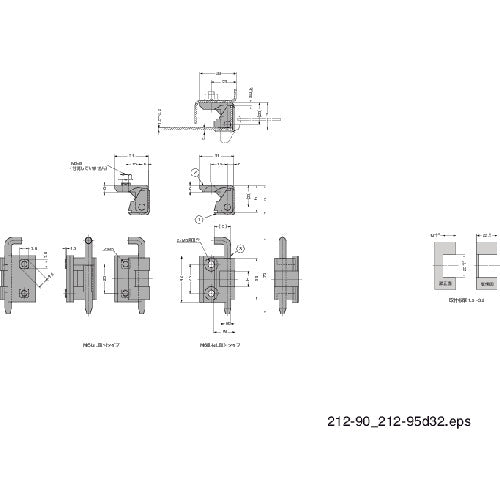

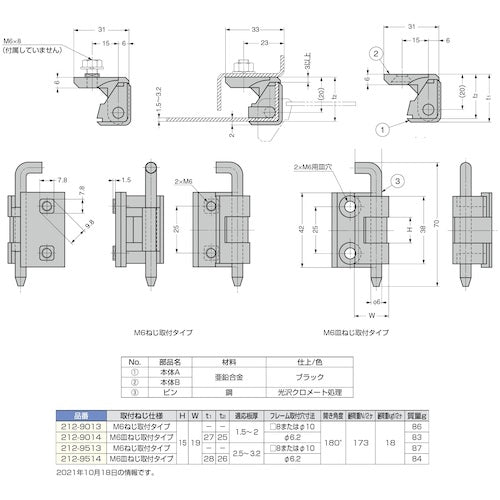

Catalog number: 212-9514 Features: * Used for two-point locking. * The dual roller seat (sold separately) attached to the frame draws in the rollers with a compression function that tightens the entire door evenly and powerfully. * By using it in combination with a 212-type hinge, the door itself can be made to be left-right oriented. Uses: ●For cover doors Specifications: ●Total length (mm): 70 ●Thickness (mm): 28 ●Number of screw holes: 2 ●Hole diameter (mm): M6 ●Load capacity (kg) when using 2 pieces: 18 ●Compatible plate thickness (mm): 2.5 to 3.2 ●Frame mounting hole dimensions: φ6.2 ●Opening angle (°): 180° ●t1 (mm): 28 ●t2 (mm): 26 ●H (mm): 15 ●W (mm): 19 ●Opening: left and right ●Height (mm): 70 ●Length (mm): 42 ●Removable type ●Blade plate thickness (mm): 6 ●Minimum compatible plate thickness (mm): 2.5 ●Maximum compatible plate thickness (mm): 3.2 Material/Finish: ●Zinc alloy
