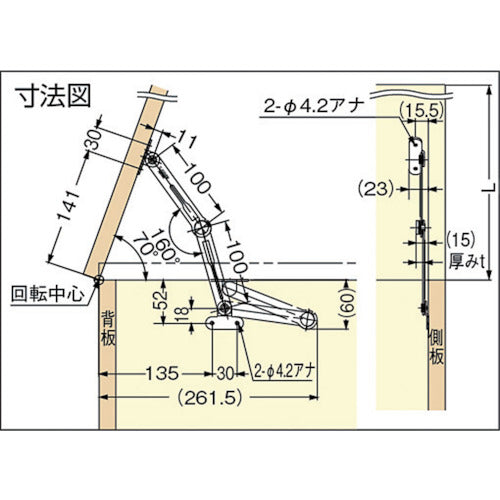

Catalog number: S-100T30R Features: ●Torque stay for top lid, top opening, bottom opening, and side opening. ●Free stop specification that can hold any angle. ●Compact and thin, so it saves space. Applications: ●For top lid doors, etc. Specifications: ●Name: Right-hand ●Total length (mm): 236.5 ●Thickness (mm): 10 ●Hole diameter (mm): 4.2 ●Number of holes (pieces): 4 ●Rated torque (N・m): 3 ●Specifications (or left/right distinction): Right-hand ●Gloss barrel polishing Material/Finish: ●Stainless steel (SUS430) ●Gloss barrel polishing finish Caution: ●Not all stainless steel. ●Do not get wet with water, oil, lubricants, etc. ●When using two or more, make sure the dimensions of the installation position are the same ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
