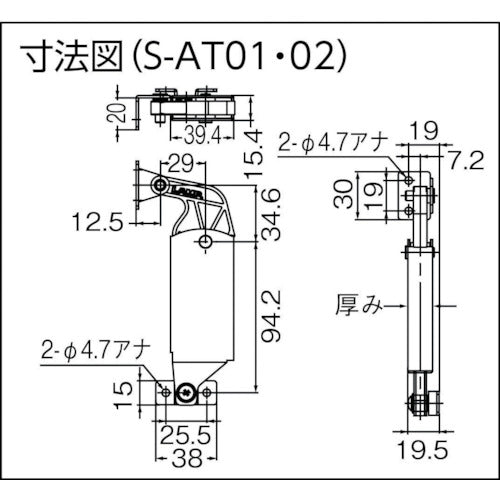

Catalog number: S-AT01 Features: ●The heavy top lid can be lifted easily by using the reaction force of the spring. ●Can be easily held at an opening angle of approximately 10 to 80°. ●Small and space-saving. Applications: ●For top lid doors. Specifications: ●Name: For use with side panels ●Total length (mm): 151.3 ●Thickness (mm): 15.4 ●Hole diameter (mm): 4.7 ●Number of holes (pcs): 4 ●Axle torque (N/m) when using one: 6.1 to 8.8 ●With side panels Material/Finish: ●Stainless steel (SUS430) ●Polyacetal (POM) Caution: ●Please also consider the material of the mounting surface. ●Low rigidity may cause deformation or damage. ●Do not use outdoors. ●Do not use with slide hinges (multi-axis hinges).
