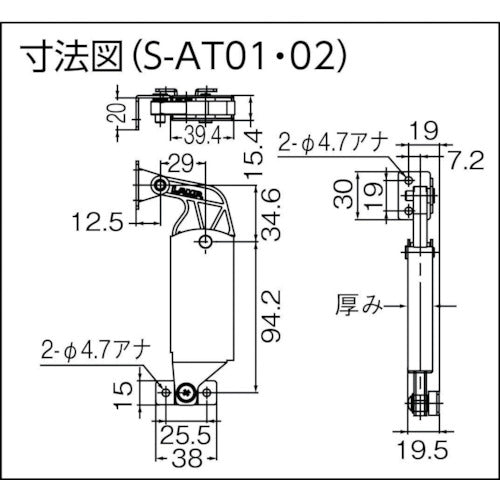

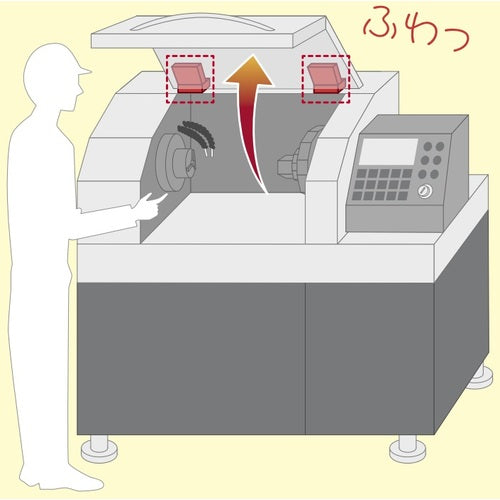

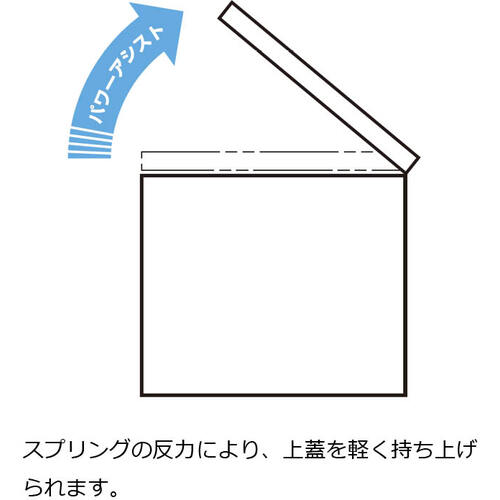

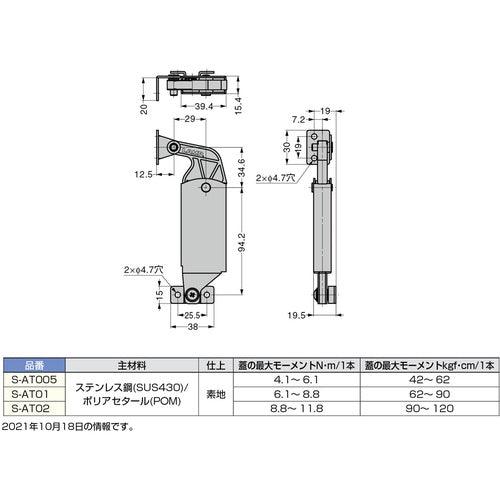

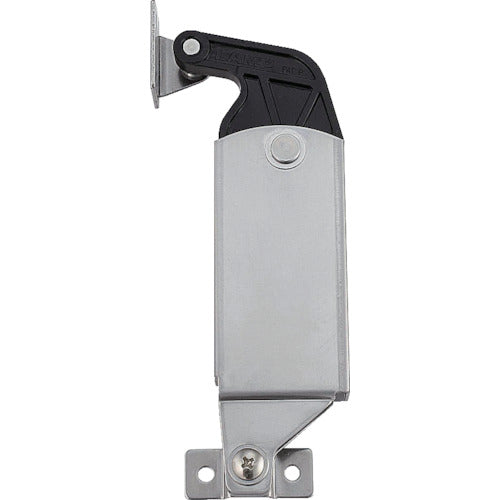

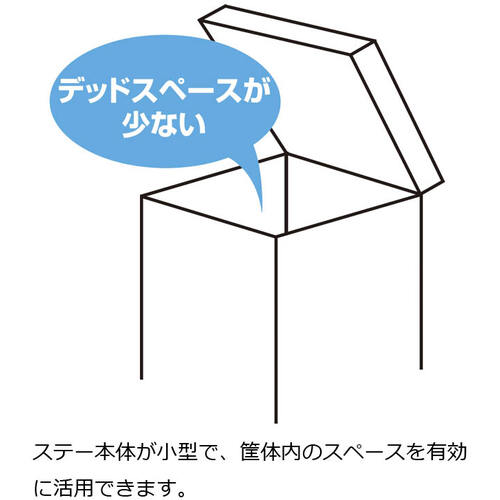

Catalog number: S-AT02 Features: ●The heavy top lid can be lifted easily by using the reaction force of the spring. ●It can be easily held at an opening angle of about 10 to 80 degrees. ●It is small and space-saving. Uses: ●For top lid doors. Specifications: ●Name: For with side plate ●Total length (mm): 151.3 ●Thickness (mm): 15.4 ●Hole diameter (mm): 4.7 ●Number of holes (pcs): 4 ●Axle torque (N/m) when using 1 pc: 8.8 to 11.8 ●With side plate Material/Finish: ●Stainless steel (SUS430) ●Polyacetal (POM) Caution: ●Please also consider the material of the mounting surface. ●If the rigidity is low, it may deform or break. ●Do not use outdoors. ●Do not use with slide hinges (multi-axis hinges). ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
