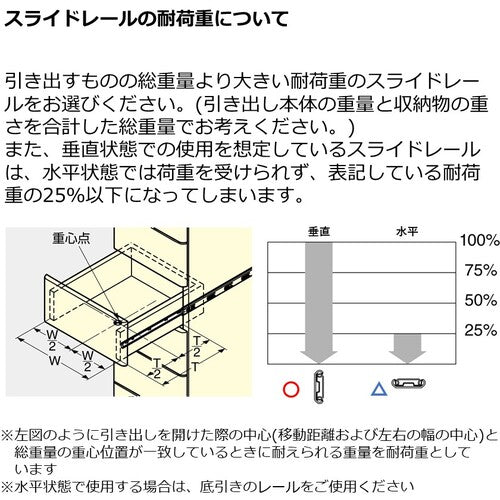

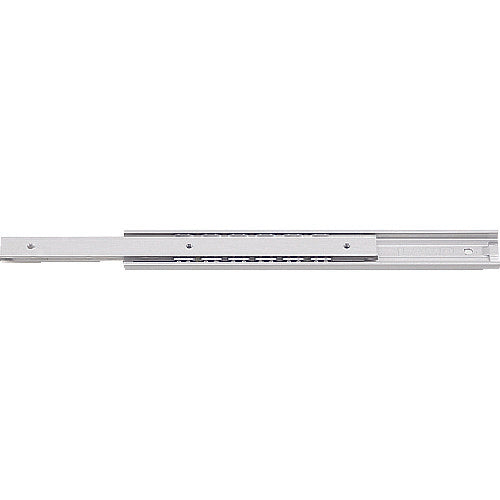

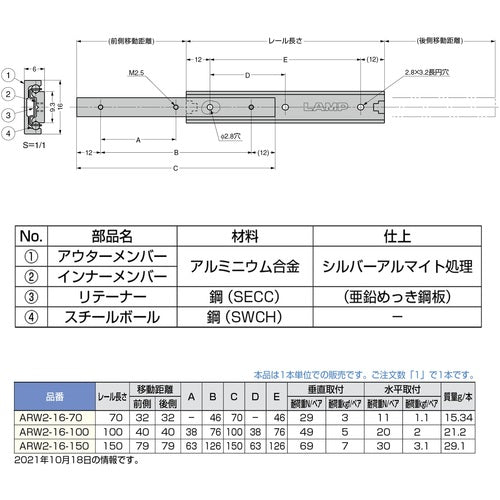

Catalog number: ARW2-16-150 Features: ●3/4 slide, 2-stage pull, double-travel slide rail. ●The retainer prevents contact between the balls, so there is little wobble and it slides smoothly. ●The height dimension is small at 16 mm and the design has little deflection, so it can be used in a variety of places. ●The outer and inner members are made of aluminum alloy extrusions, so it is lightweight. Specifications: ●Width (mm): 6 ●Height (mm): 16 ●Length (mm): 150 ●Travel distance (mm): Front: 79/Rear: 79 ●Rated load (N) pair/vertical: 69 ●Rail length L (mm): 150 ●Stroke length S (mm): Front: 79/Rear: 79 ●Mounting hole dimensions (mm) A: 2.8 ●Double-travel type Material/Finish: ●Outer member/inner member: Aluminum alloy ●Surface treatment: Silver anodized ●Retainer/ball: Steel
