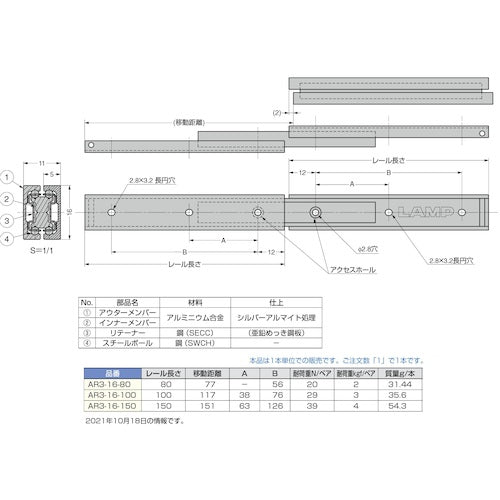

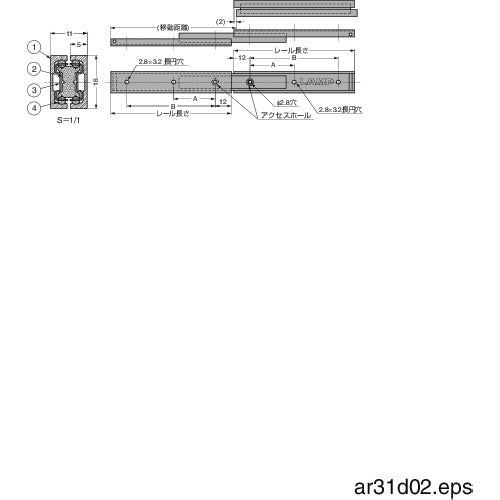

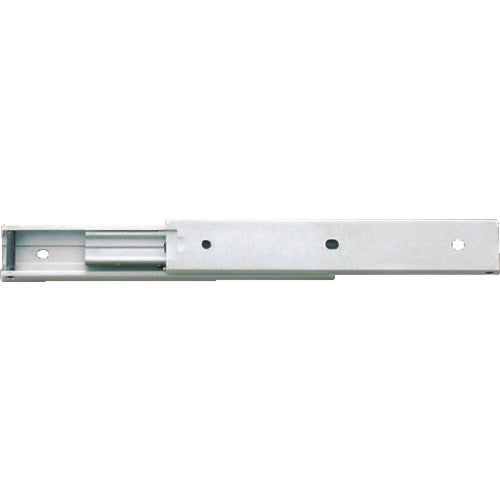

Catalog number: AR3-16-80 Features: ● A 3-stage sliding rail that allows the inner member to be pulled out completely. ● The height dimension is small at 16 mm, so it can be used in a variety of locations. ● The outer and inner members are made of aluminum alloy extrusions, making it lightweight. Specifications: ● Width (mm): 11 ● Height (mm): 16 ● Length (mm): 80 ● Travel distance (mm): 77 ● Rated load (N) pair/vertical: 20 ● Rail length L (mm): 80 ● Stroke length S (mm): 77 ● Load capacity 20N/pair (2kgf/pair) Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Retainer: Steel (galvanized steel sheet) ● Ball: Steel (SWCH)
