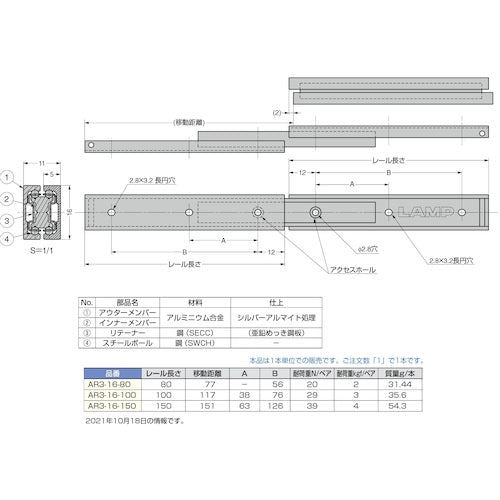

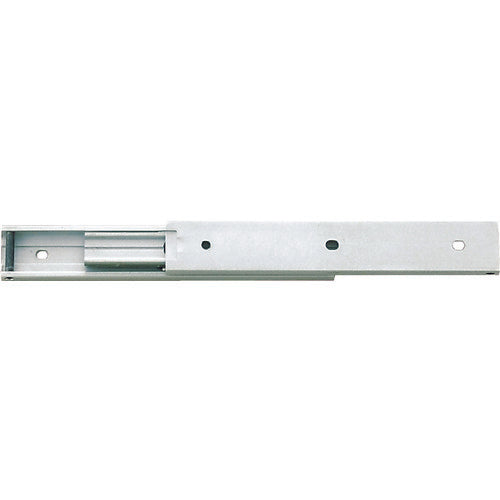

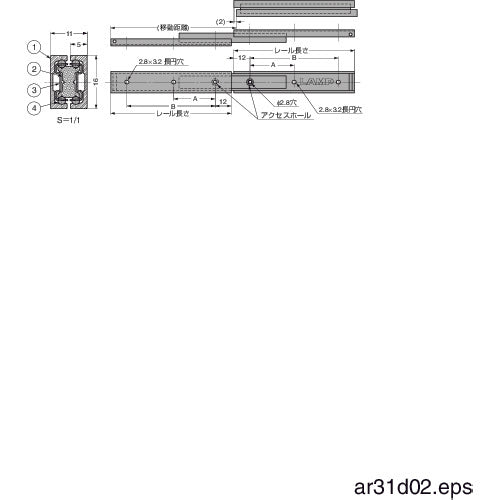

Catalogue number: AR3-16-100 Features: ● A 3-stage sliding rail that allows the inner member to be pulled out completely. ● With a small height dimension of 16 mm, it can be used in a variety of locations. ● The outer and inner members are made of aluminum alloy extrusions, making it lightweight. Specifications: ● Width (mm): 11 ● Height (mm): 16 ● Length (mm): 100 ● Travel distance (mm): 117 ● Rated load (N) pair/vertical: 29 ● Rail length L (mm): 100 ● Stroke length S (mm): 117 ● Load capacity 29N/pair (3kgf/pair) Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Retainer/ball: Steel
