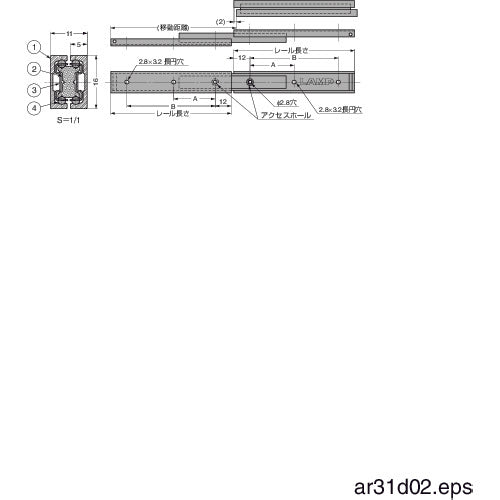

Catalogue number: AR3-16-150 Features: ●A 3-stage sliding rail that allows the inner member to be pulled out completely. ●With a small height dimension of 16 mm, it can be used in a variety of locations. ●The outer and inner members are made of aluminum alloy extrusions, making it lightweight. Specifications: ●Width (mm): 11 ●Height (mm): 16 ●Length (mm): 150 ●Travel distance (mm): 151 ●Rated load (N) pair/vertical: 39 ●Rail length L (mm): 150 ●Stroke length S (mm): 151 ●Load capacity 39N/pair (4kgf/pair) Material/Finish: ●Outer rail/inner rail: Aluminum alloy ●Surface treatment: Silver anodized ●Retainer/ball: Steel
