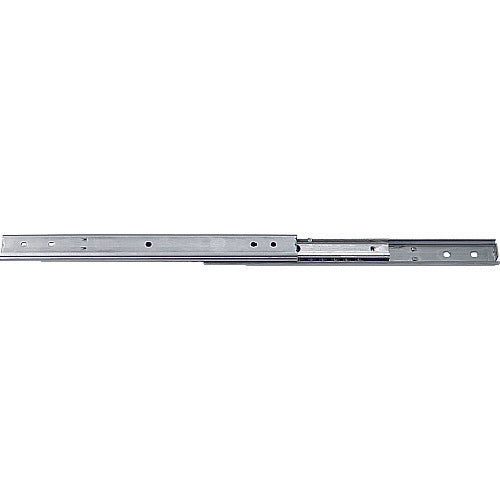

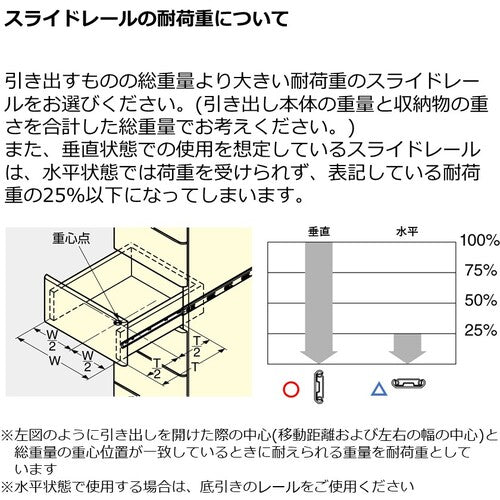

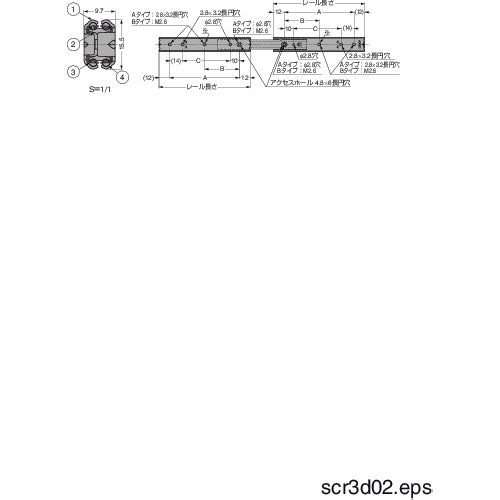

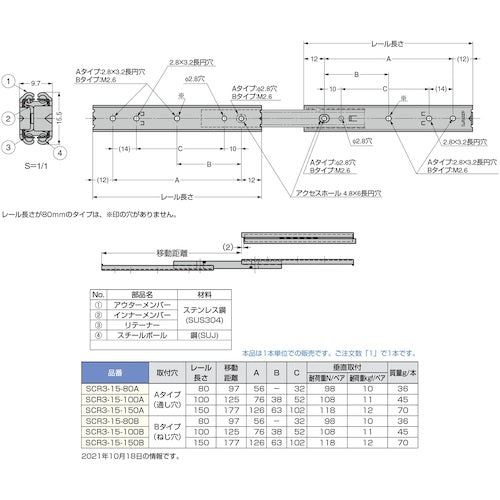

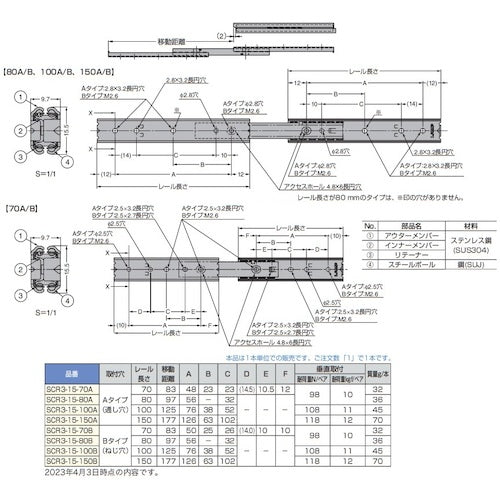

Catalog number: SCR3-15-150A Features: ● 3-stage sliding rail. ● Equipped with a mechanism that prevents ball creep, this rail has little change in operating force. ● Small height dimension of 15.5mm, designed to reduce deflection, so it can be used in a variety of locations. Specifications: ● Width (mm): 9.7 ● Height (mm): 15.5 ● Length (mm): 150 ● Travel distance (mm): 177 ● Rated load (N) pair/vertical: 118 ● Rail length L (mm): 150 ● Stroke length S (mm): 177 ● Vertical mounting load capacity (2 rails): 12kgf Material/Finish: ● Outer member, inner member, retainer: Stainless steel (SUS304) ● Ball: Steel
