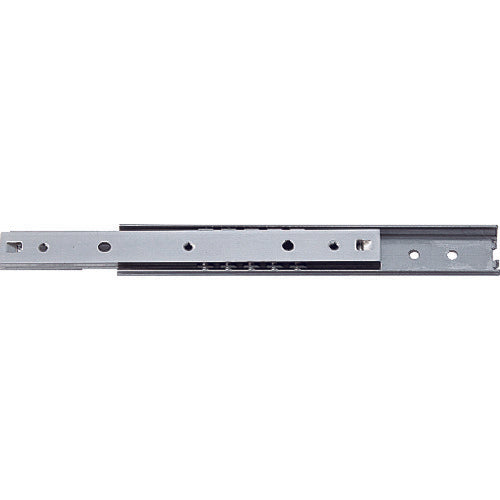

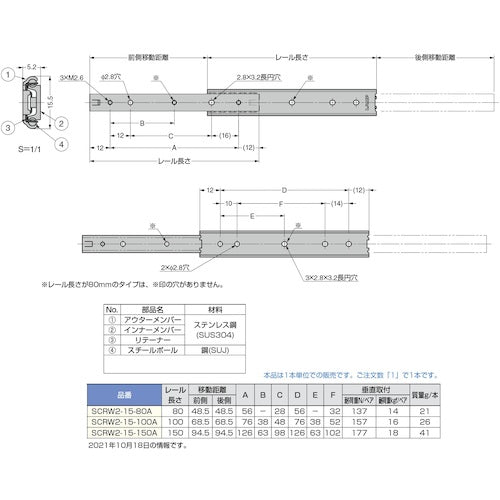

Catalog number: SCRW2-15-100A Features: ●3/4 slide, 2-stage pull, double-travel slide rail. ●With a small height of 15.5mm and a design that reduces deflection, it can be used in a variety of locations. Specifications: ●Width (mm): 5.2 ●Height (mm): 15.5 ●Length (mm): 100 ●Travel distance (mm): Front: 68.5/Rear: 68.5 ●Rated load (N) pair/vertical: 157 ●Rail length L (mm): 100 ●Stroke length S (mm): Front and rear 68.5 each ●Vertical mounting load capacity (using 2 rails): 16kgf Material/Finish: ●Outer member, inner member, retainer: Stainless steel (SUS304) ●Ball: Steel
