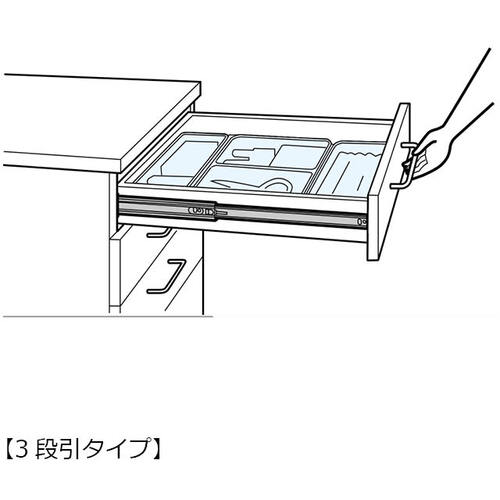

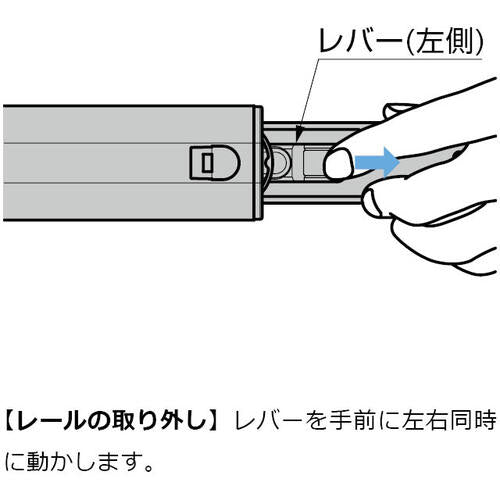

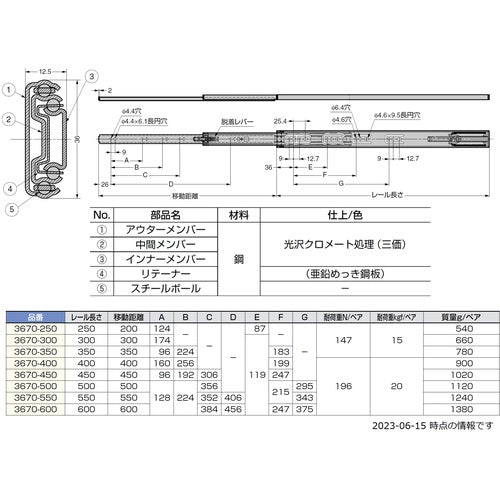

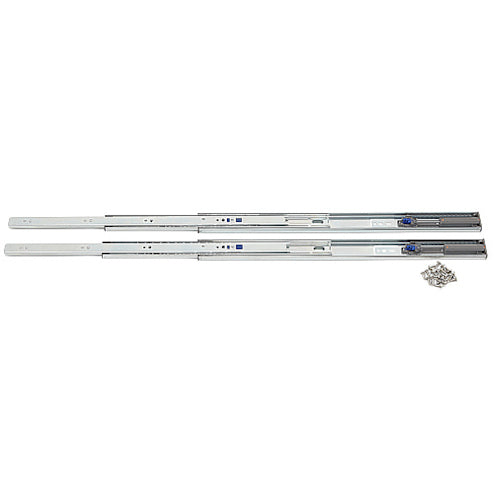

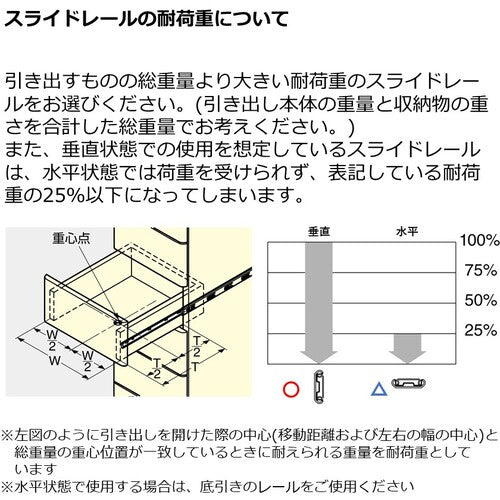

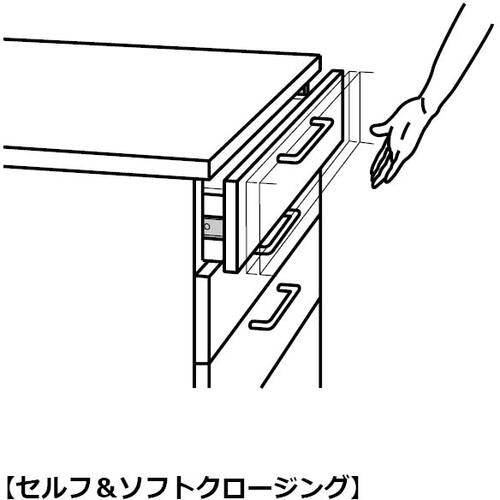

Catalog number: 3670-450 Features: ● 3-stage sliding rail. ● For rail lengths of 300mm or more, the inner member can be fully pulled out. ● The position where the self-closing and soft-closing mechanism operates is 20mm before the drawer is fully closed for rail lengths up to 350mm, and 36mm for rail lengths of 400mm or more. ● The maximum width of the drawer is the rail length + 200mm. ● The shock absorbing effect of the outer member mounting part ensures smooth sliding even with slight deformation of the cabinet. ● The inner member can be removed by operating the lever. Specifications: ● Width (mm): 12.5 ● Height (mm): 36 ● Length (mm): 450 ● Travel distance (mm): 450 ● Rated load (N) pair/vertical: 196 ● With self-closing and soft-closing mechanism Material/Finish: ● Steel Set contents/Accessories: ● Cross-recessed truss tapping screw 4 x 12 Note: ● This product is sold in sets (2 pieces). ● One order quantity is "1" for one set.
