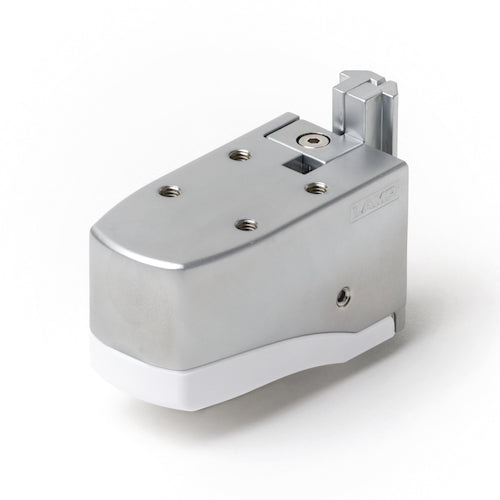

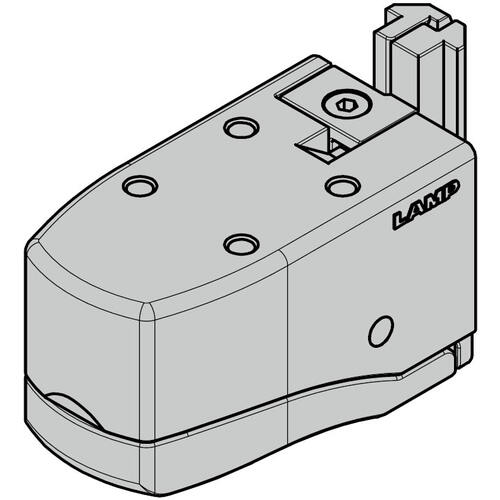

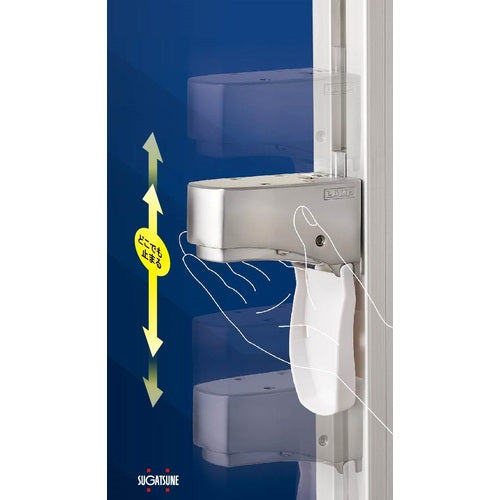

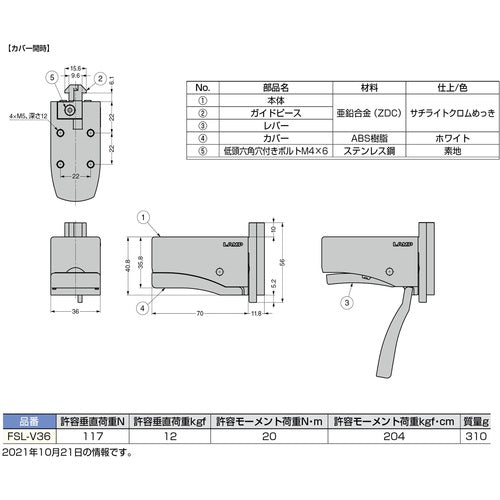

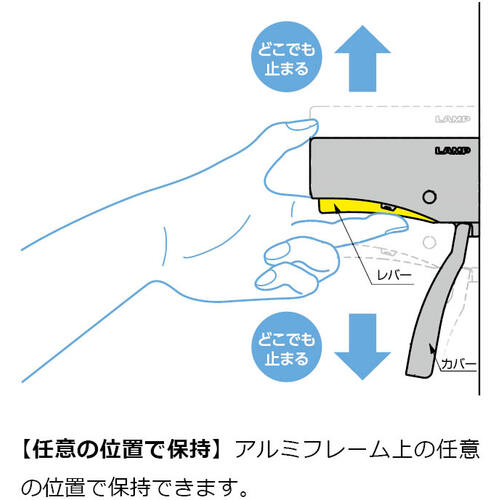

Catalog number: FSL-V36 Features: ●This unit slides on an aluminum frame and can be held at any position. ●The lever that slides up and down is covered to prevent malfunction. ●Use by attaching to an FSL-L aluminum frame. ●Can also be attached to commercially available aluminum frames (frame width 40mm or more). ●For details, please refer to the reference dimensions of the applicable frame below. ●It will move if you apply force vertically upwards without operating the lever. ●Can be retrofitted to an aluminum frame. ●When combined with a monitor bracket (sold separately), a monitor can be attached. Specifications: ●Width (mm): 36 ●Height (mm): 56 ●Length (mm): 70 ●Compatible frame: FSL-L type ●Allowable vertical load 117N (12kgf), allowable moment load 20N・m (204kgf・cm)
