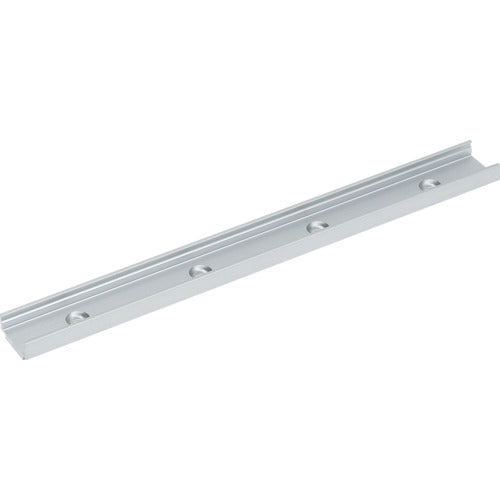

SUGATSUNE (190045763) MLG20-200 Multi-roller linear guide rail MLG20-200 1 piece

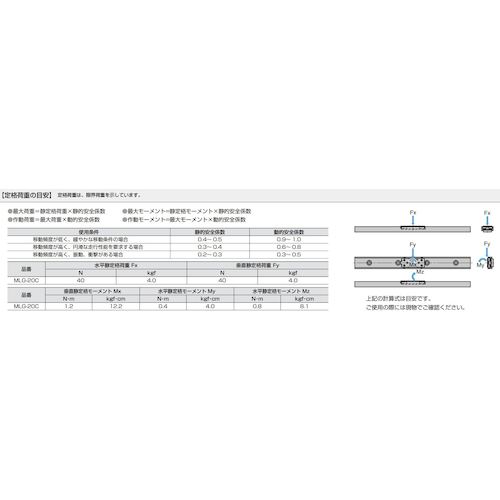

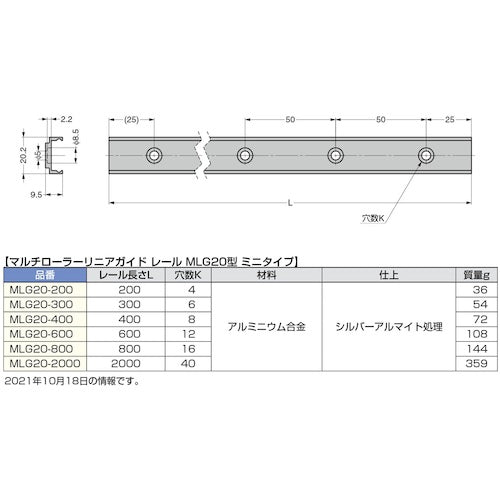

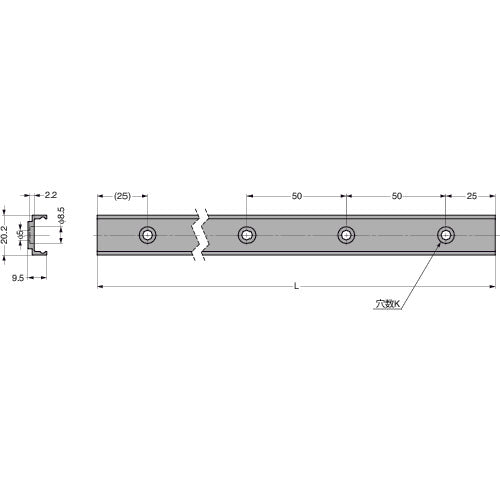

Catalog number: MLG20-200 Features: ●Rail exclusively for MLG-20C. ●Made of lightweight and durable aluminum alloy. ●Anodized for excellent corrosion resistance. Applications: ●For various industrial equipment. Specifications: ●Width (mm): 20.2 ●Length (mm): 200 ●Height (mm): 9.5 ●Horizontal static load rating (N/kgf): 40/4.0 (when guide and carriage are properly combined) ●Operating temperature range (℃): 0℃ to 40℃ ●Hole pitch (mm): 50 ●Recommended mounting bolt: Hexagon socket button bolt M4 ●L (mm): 200 ●Number of holes K: 4 ●Compatible linear guide carriage: MLG-20C ●For MLG20 type Material/Finish: ●Aluminum alloy
