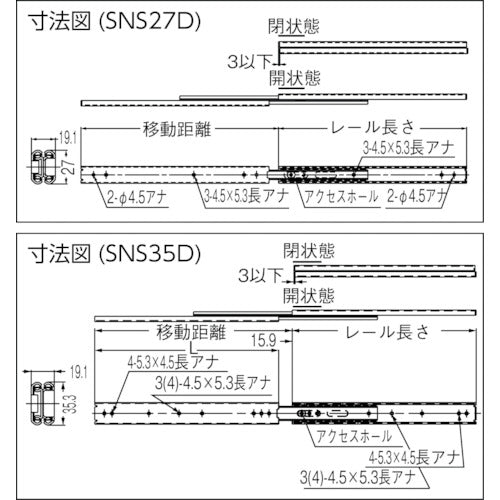

Catalog number: SNS27D-45 Features: ● Made entirely of stainless steel, it has excellent corrosion resistance. ● A 3-stage sliding rail that allows the inner rail to be completely pulled out. Uses: ● For drawers. Specifications: ● Width (mm): 19.1 ● Height (mm): 27.0 ● Length (mm): 450.0 ● Travel distance (mm): 462.8 ● Rated load (N) pair/vertical: 294 ● Type: All stainless steel ● Rail length L (mm): 450 ● Stroke length S (mm): 462.8 ● Number of stages (stages): 3-stage ● Base material Material/Finish: ● Outer rail, inner rail, intermediate rail, retainer: Stainless steel (SUS304) ● Ball: Stainless steel (SUS440) Note: ● The image is of one of the products in the same series, and the appearance may differ from that of this product number.
