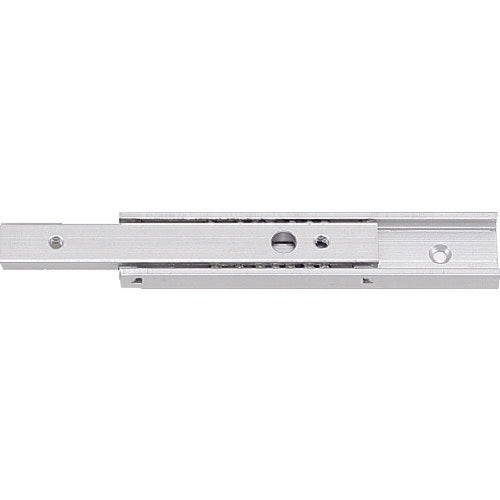

SUGATSUNE (190119533) AR2-100 Aluminum alloy slide rail AR2-100 1 piece

Catalog number: AR2-100 Features: ● 3/4 slide, two-stage sliding rail. ● Made of aluminum extrusion material, it is small, lightweight, and has little deflection. Specifications: ● Width (mm): 8 ● Height (mm): 20 ● Length (mm): 100 ● Travel distance (mm): 60 ● Rated load (N) pair/vertical: 150 ● Rail length L (mm): 100 ● Stroke length S (mm): 60 ● Load capacity (2 rails): 15.3 kgf Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Ball: Steel (SWCH)
