スガツネ工業（株）

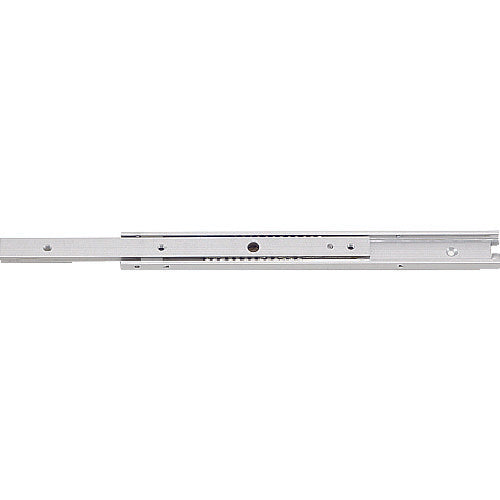

SUGATSUNE (190119534) AR2-200 Aluminum alloy slide rail AR2-200 1 piece

SUGATSUNE (190119534) AR2-200 Aluminum alloy slide rail AR2-200 1 piece

JAN：4510932030137 　
Machinery Parts Mechatronics Parts Slide rail Sugatsune Industry Parts
¥1,985
¥1,985
Sale Sold out
Shipping calculated at checkout.

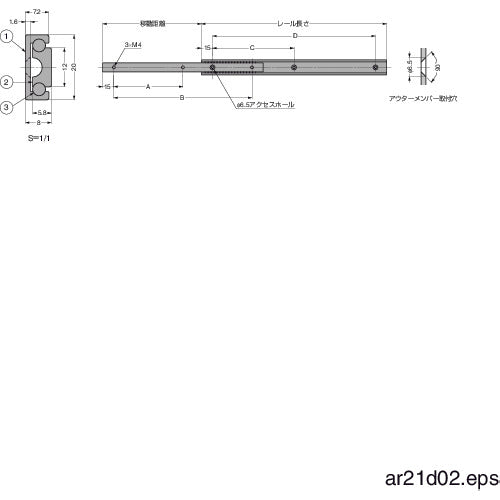

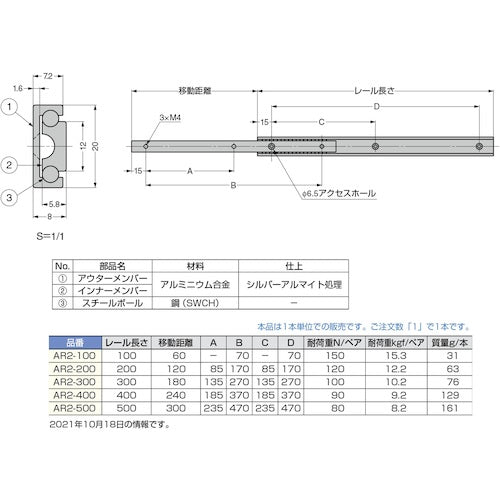

Catalog number: AR2-200 Features: ● 3/4 slide, two-stage sliding rail. ● Made of aluminum extrusion material, it is small, lightweight, and has little deflection. Specifications: ● Width (mm): 8 ● Height (mm): 20 ● Length (mm): 200 ● Travel distance (mm): 120 ● Rated load (N) pair/vertical: 120 ● Rail length L (mm): 200 ● Stroke length S (mm): 120 ● Load capacity (2 rails): 12.2 kgf Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Ball: Steel
View full details
