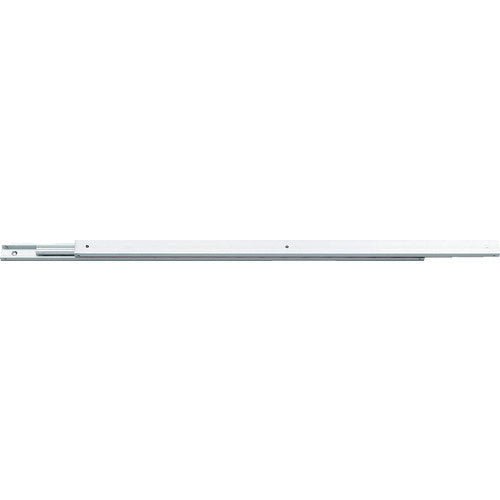

SUGATSUNE (190119538) AR3-100 Aluminum alloy slide rail AR3-100 1 piece

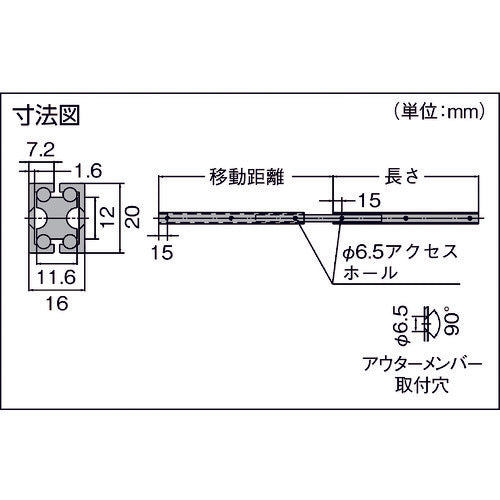

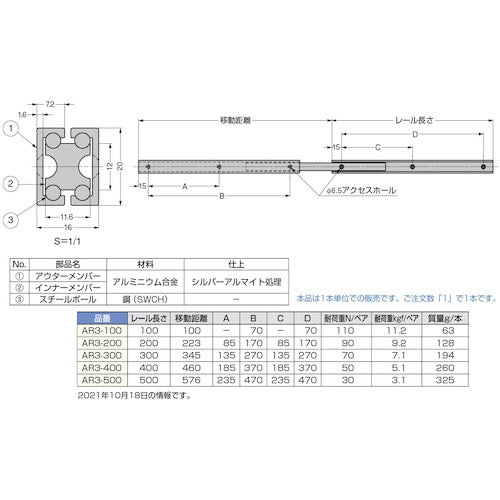

Catalog number: AR3-100 Features: ● 3-stage sliding rail. ● Made of aluminum extrusion material, it is small, lightweight, and has little deflection. Applications: ● For cabinets. Specifications: ● Width (mm): 16 ● Height (mm): 20 ● Length (mm): 100 ● Travel distance (mm): 100 ● Rated load (N) pair/vertical: 110 ● Rail length L (mm): 100 ● Stroke length S (mm): 100 ● Load capacity (2 rails): 11.2 kgf Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Ball: Steel (SWCH)
