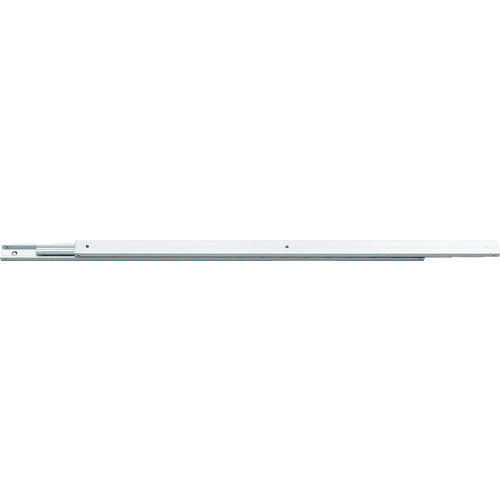

SUGATSUNE (190119539) AR3-200 Aluminum alloy slide rail AR3-200 1 piece

SUGATSUNE (190119539) AR3-200 Aluminum alloy slide rail AR3-200 1 piece

JAN：4510932030182 　
Machinery Parts Mechatronics Parts Slide rail Sugatsune Industry Parts
¥3,210
¥3,210
Sale Sold out
Shipping calculated at checkout.

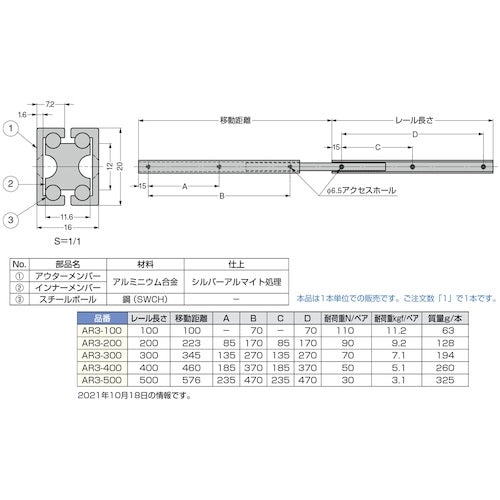

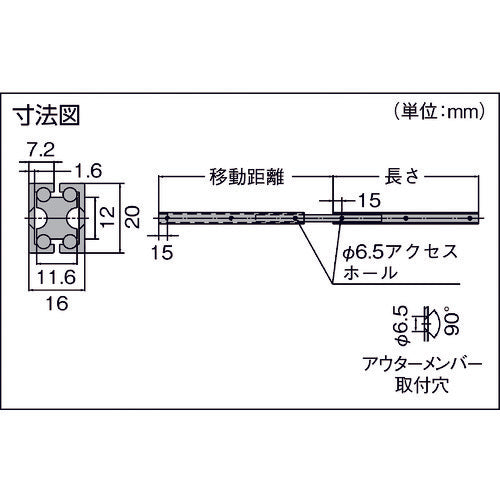

Catalog number: AR3-200 Features: ● 3-stage sliding rail. ● Made of aluminum extrusion material, it is small, lightweight, and has little deflection. Applications: ● For cabinets. Specifications: ● Width (mm): 16 ● Height (mm): 20 ● Length (mm): 200 ● Travel distance (mm): 223 ● Rated load (N) pair/vertical: 90 ● Rail length L (mm): 200 ● Stroke length S (mm): 223 ● Load capacity (2 rails): 9.2 kgf Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Ball: Steel (SWCH)
