スガツネ工業（株）

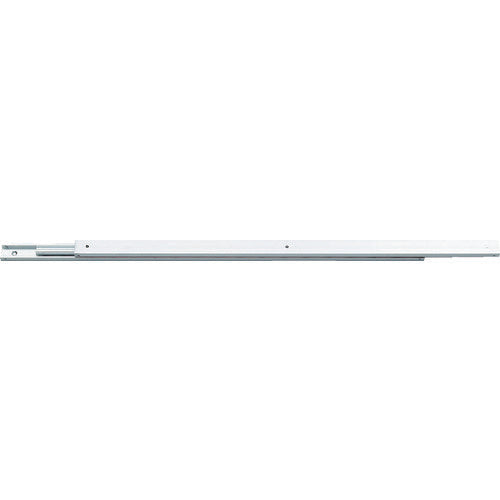

SUGATSUNE (190119542) AR3-500 Aluminum alloy slide rail AR3-500 1 piece

SUGATSUNE (190119542) AR3-500 Aluminum alloy slide rail AR3-500 1 piece

JAN：4510932030212 　
Machinery Parts Mechatronics Parts Slide rail Sugatsune Industry Parts
¥7,709
¥7,709
Sale Sold out
Shipping calculated at checkout.

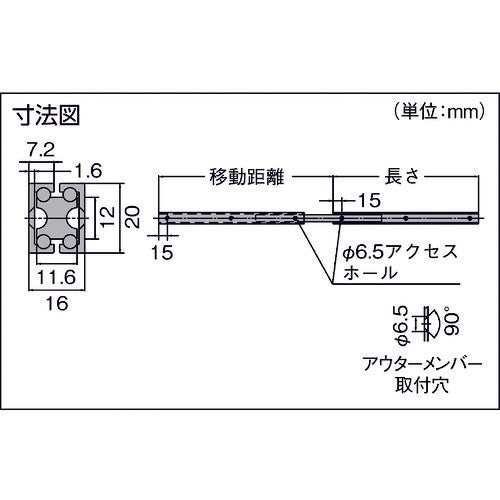

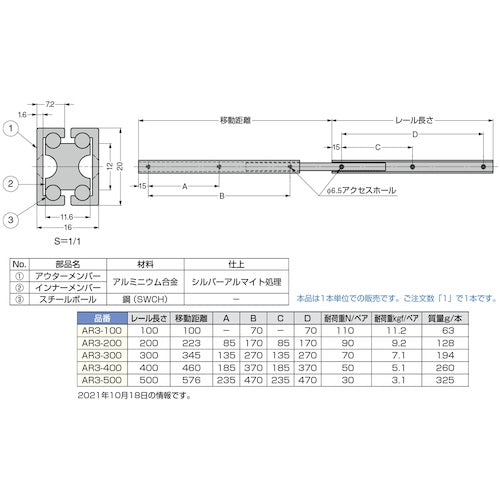

Catalog number: AR3-500 Features: ● 3-stage sliding rail. ● Made of aluminum extrusion material, it is small, lightweight, and has little deflection. Applications: ● For cabinets. Specifications: ● Width (mm): 16 ● Height (mm): 20 ● Length (mm): 500 ● Travel distance (mm): 576 ● Rated load (N) pair/vertical: 30 ● Rail length L (mm): 500 ● Stroke length S (mm): 576 ● Load capacity (2 rails): 3.1 kgf Material/Finish: ● Outer rail/inner rail: Aluminum alloy ● Surface treatment: Silver anodized ● Ball: Steel (SWCH)
