SUGATSUNE (200012441) SUGT-76-PSE Heavy Duty Caster (Darco Caster) SUGT-76-PSE 1 piece

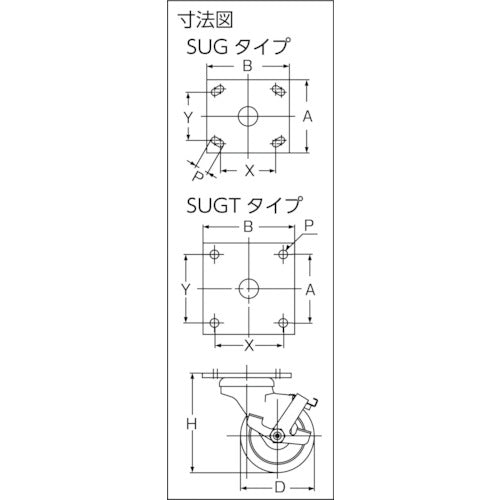

Catalog number: SUGT-76-PSE Features: ● Quiet and smooth maneuverability, easy to operate with little force. ● Ergonomic design with low starting resistance and rolling resistance. ● The rotating part uses a double ball bearing system that provides good rotation even under load. Specifications: ● Wheel diameter D (mm): 152.4 ● Type: Swivel ● Allowable load (daN): 264.6 ● Allowable load (kgf): 270 ● Wheel width (mm): 34.9 ● Mounting height H (mm): 192.1 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 90 ● Mounting pitch Y (mm): 90 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Glossy chrome plating finish ● Wheels: Solid elastomer (with steel wheel cover)
