SUGATSUNE (200012446) SUGT-406-PSE Heavy Duty Caster (Darco Caster) SUGT-406-PSE 1 piece

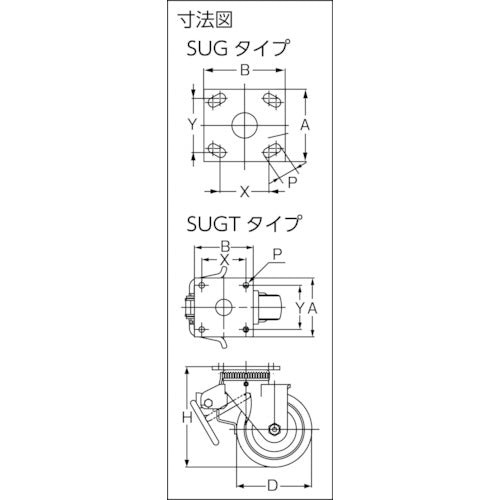

Catalog number: SUGT-406-PSE Features: ● Quiet and smooth maneuverability, easy to operate with little force. ● Ergonomic design with low starting resistance and rolling resistance. ● The rotating part uses a double ball bearing system that provides good rotation even under load. Applications: ● Heavy-duty transport equipment Specifications: ● Wheel diameter D (mm): 152.4 ● Type: Swivel ● Allowable load (daN): 441 ● Allowable load (kgf): 450 ● Wheel width (mm): 51.6 ● Mounting height H (mm): 195.3 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 90 ● Mounting pitch Y (mm): 90 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Glossy chromate treatment ● Wheels: Solid elastomer (with steel wheel cover)
