SUGATSUNE (200012447) SUGT-406B-PSE Heavy Duty Caster (Darco Caster) SUGT-406B-PSE 1 piece

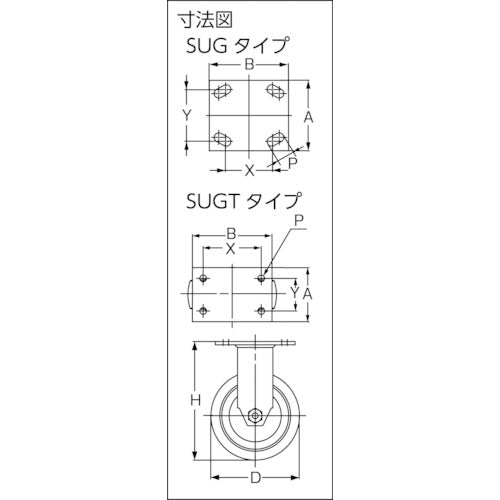

Catalog number: SUGT-406B-PSE Features: * Quiet and smooth maneuverability, easy to operate with little force. * Ergonomic design with low starting resistance and rolling resistance. * Double ball bearing system for good rotation even under load. Uses: ●Heavy-duty transport equipment Specifications: ●Wheel diameter D (mm): 152.4 ●Type: Free-wheeling (with stopper) ●Allowable load (daN): 441 ●Allowable load (kgf): 450 ●Wheel width (mm): 51.6 ●Mounting height H (mm): 195.3 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 120 ●Mounting pitch X (mm): 90 ●Mounting pitch Y (mm): 90 ●Mounting hole diameter P (mm): 11.5 ●Plate type ●Free-wheeling (with stopper) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Glossy chromate treatment ●Wheels: Solid elastomer (with steel wheel cover)
