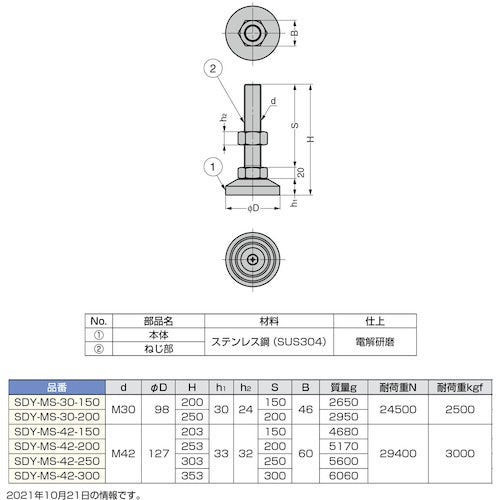

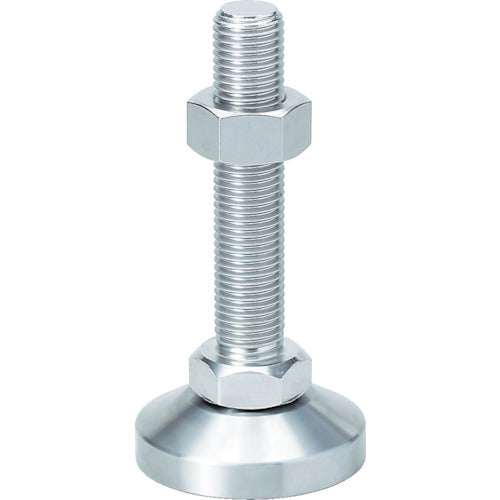

Catalog number: SDY-MS-42-300 Features: ● Treated to prevent seizing (galling). Applications: ● Machine tools, industrial machinery, etc. Specifications: ● Allowable load (kgf): 3000 ● Thread dimensions: M42 ● Thread length (mm): 300 ● Total height (mm): 353 ● Base diameter (mm): 127 ● Color: Stainless steel ● Width (mm): 127 ● Height (mm): 353 ● Nut included Material/Finish: ● Threaded part: Stainless steel (SUS304) ● Base: Stainless steel (SUS304) Note: ● The image is of one of the products in the same series, and the appearance may differ from that of this product number.
