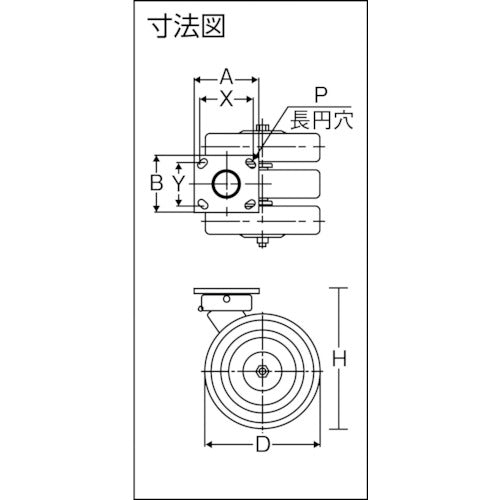

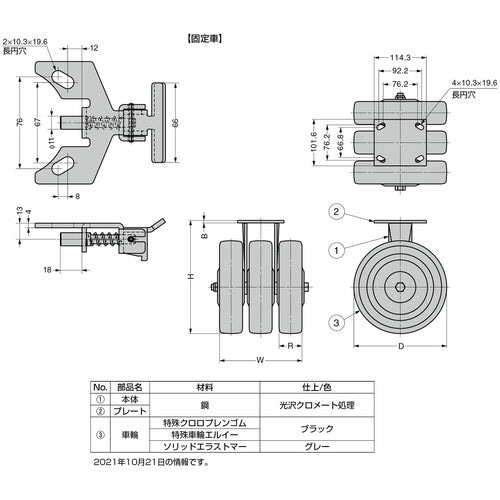

Catalog number: SUG-31-KP3408-PSE Features: *The plate and main body are attached using a special structure that does not use a kingpin. *The rotating shaft moves smoothly with little wobble. *The three-wheel design provides better maneuverability than the twin-wheel design. Uses: ●Heavy-duty transport equipment Specifications: ●Wheel diameter D (mm): 203 ●Type: swivel ●Permissible load (daN): 798.7 ●Permissible load (kgf): 815 ●Wheel width (mm): 181 ●Mounting height H (mm): 247 ●Mounting seat A (mm): 114.3 ●Mounting seat B (mm): 101.6 ●Mounting pitch X (mm): 76.2-92.2 ●Mounting pitch Y (mm): 66.8-76.2 ●Metal fittings surface treatment: Black paint ●Plate type ●Swivel ●Mounting hole P: Oval hole 4 x 10.3 x 19.6 mm Material/Finish: ●Metal fittings: Steel ●Wheels: Solid elastomer (SE) Note: ●The image is of a product in the same series and may differ in appearance from the product number shown here.
