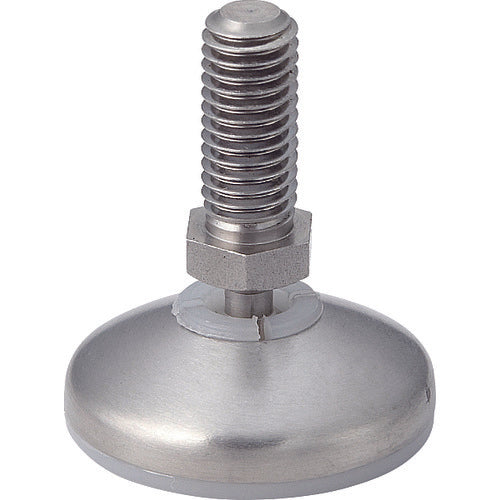

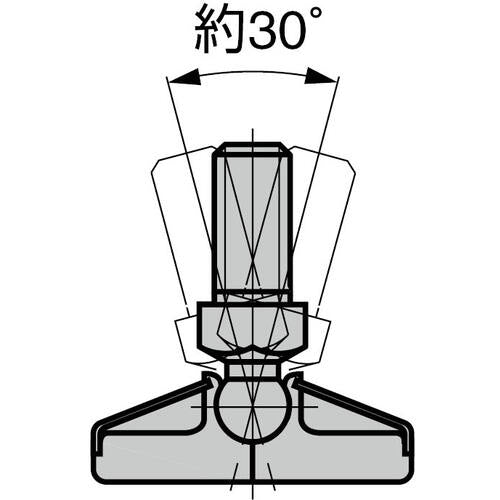

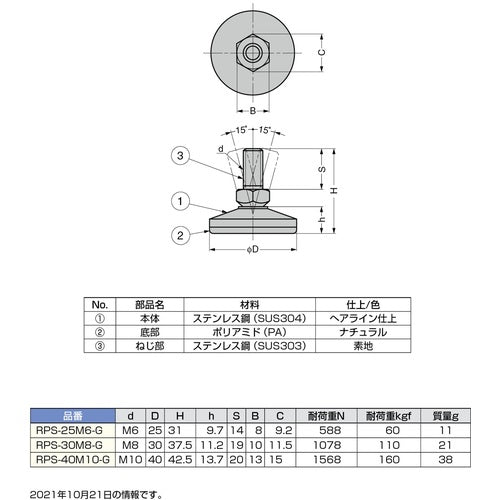

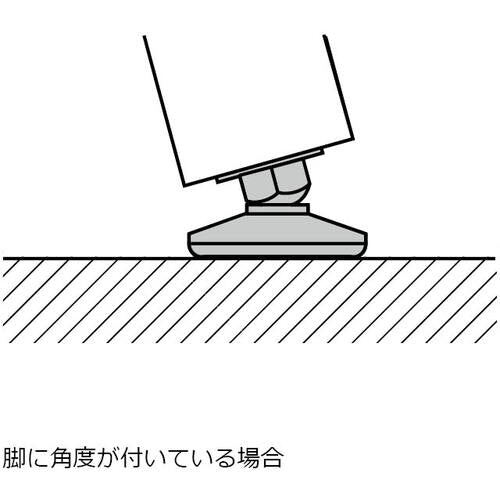

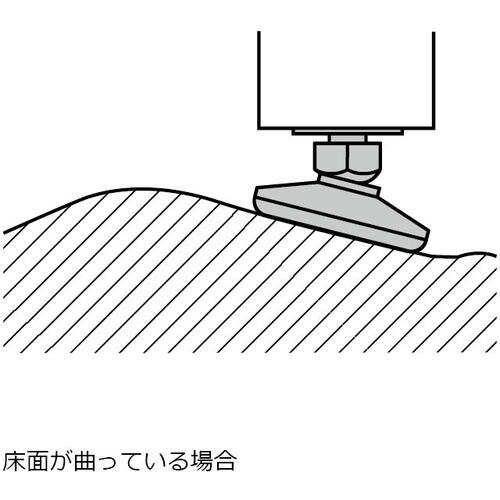

Catalog number: RPS-30M8-G Features: ●The screw part has a 30° swivel mechanism, so it can remain horizontal even if the legs are angled or the floor is inclined. ●The bottom is made of polyamide. ●The RP type with a steel screw part is also available. Applications: ●Measuring instruments, measuring devices, etc. Specifications: ●Allowable load (kgf): 110 ●Screw dimensions: M8 ●Screw length (mm): 19 ●Total height (mm): 37.5 ●Base diameter (mm): 30 ●Color: Silver ●Swivel angle (°): Approx. 30 ●Load capacity (N): 1078 ●With swivel mechanism Material/Finish: ●Screw part: Steel (SWCH) ●Base: Stainless steel (SUS304) ●Bottom: Polyamide (PA) Note: ●Screw part S can be made longer by special order.
