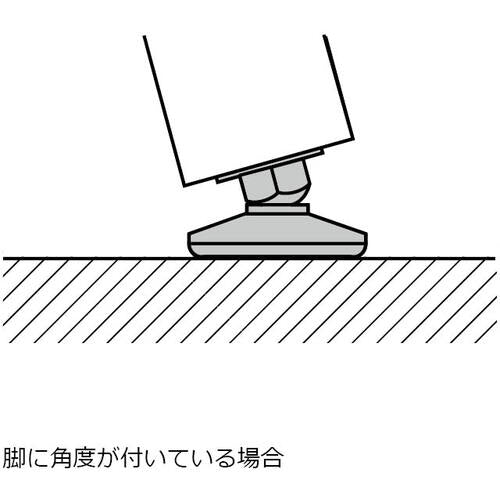

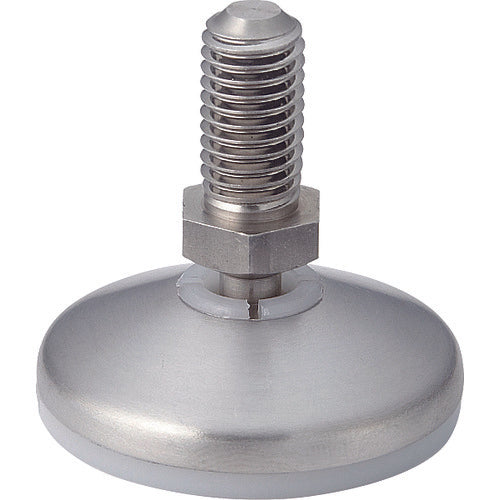

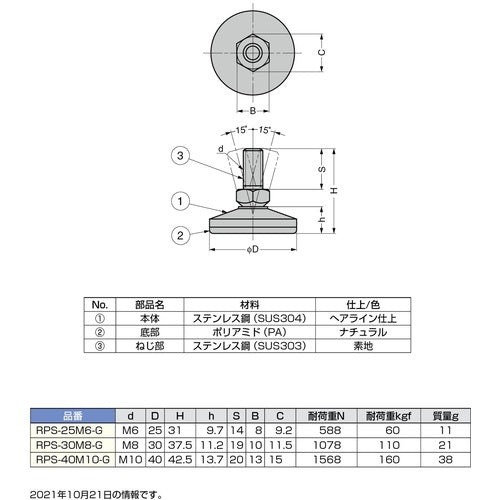

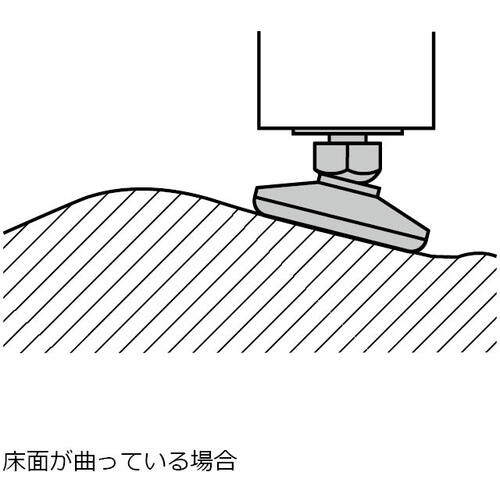

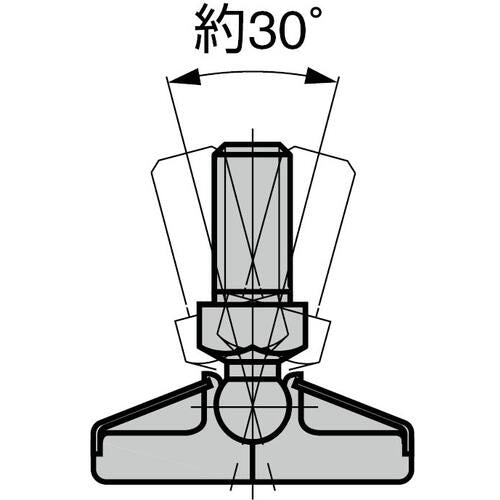

Catalog number: RPS-40M10-G Features: ●The screw part has a 30° swivel mechanism, so it can remain horizontal even if the legs are angled or the floor is inclined. ●The bottom is made of polyamide. ●The RP type with a steel screw part is also available. Applications: ●Measuring instruments, measuring devices, etc. Specifications: ●Allowable load (kgf): 160 ●Screw size: M10 ●Screw length (mm): 20 ●Total height (mm): 42.5 ●Base diameter (mm): 40 ●Color: Silver ●Swivel angle (°): Approx. 30 ●Load capacity (N): 1568 ●With swivel mechanism Material/Finish: ●Screw part: Steel (SWCH) ●Base: Stainless steel (SUS304) ●Bottom: Polyamide (PA) Note: ●Screw part S can be made longer by special order.
