SUGATSUNE (200054417) TLF-HD-205-DP Ultra Heavy Duty Floor Lock TLF-HD-205-DP 1 pc

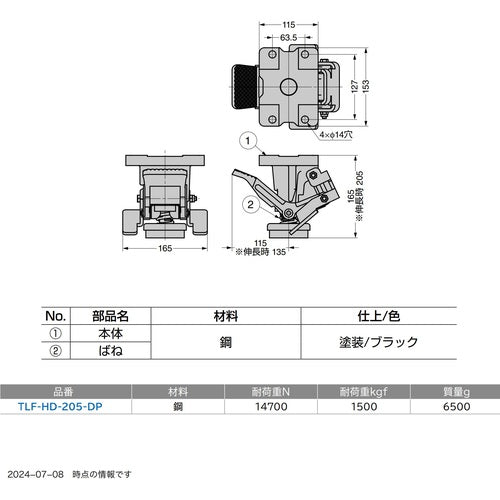

Catalog number: TLF-HD-205-DP Features: ●With a single pedal action, the dolly is locked by pushing it from below. ●For super heavy loads with a load capacity of 1.5t. Applications: ●Towing dolly, AGV/AMR, hand truck, etc. Specifications: ●Allowable load (kgf): 1500 ●Minimum height (mm): 165 ●Maximum height (mm): 205 ●Stroke (mm): 40 ●Mounting base (mm): 153 x 115 ●Mounting pitch (mm): 127 x 63.5 Caution: ●Do not use as a jack. ●Attach the pedal so that it faces outward. ●Strictly observe the appropriate mounting height. ●The mounting height of the rubber wheels will decrease depending on the load. ●Do not use as a workbench or step platform.
