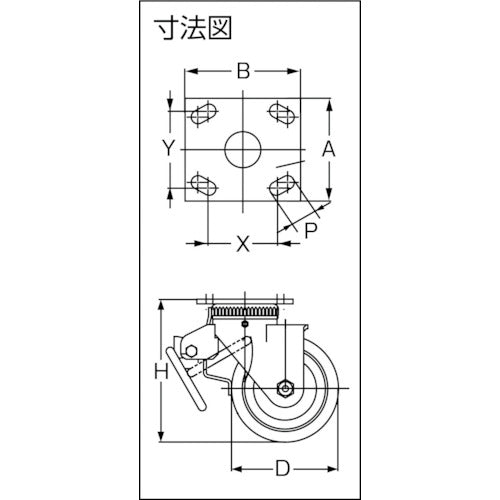

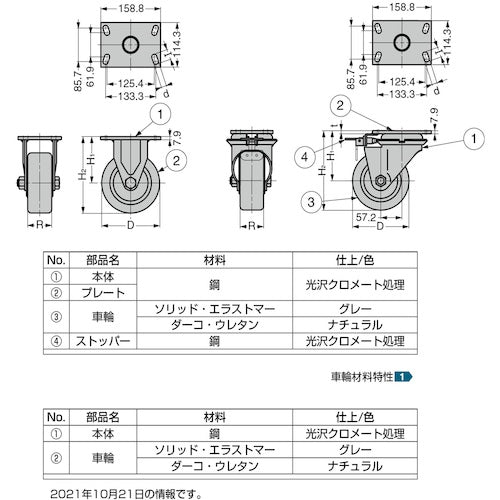

Catalog number: SUG-8-806-PSE Features: *Ergonomic design with low starting resistance and rolling resistance. *Double ball bearing system for good rotation even under load. *Hardening treatment is applied to the rotating parts to reduce wear on contact parts and enable long-term use. *Seals are applied to the rotating parts and grease is filled in the axles. Applications: ● Heavy-duty transport equipment ● Large machinery equipment ● In factories, trolleys, carts, etc. Specifications: ● Wheel diameter D (mm): 152.4 ● Type: swivel type ● Permissible load (daN): 676.2 ● Permissible load (kgf): 690 ● Wheel width (mm): 63.5 ● Mounting height H (mm): 206.4 ● Mounting base A (mm): 114.3 ● Mounting base B (mm): 158.8 ● Mounting pitch X (mm): 125.4 to 133.3 ● Mounting pitch Y (mm): 61.9 to 85.7 ● Mounting hole diameter P (mm): 13.5 x 26 ● Plate type ● Swivel type ● Mounting hole diameter P: 13.5 x 26 mm Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Glossy chromate treatment ● Wheels: Solid elastomer (SE) Caution: ● For brake-equipped wheels, use the outside of the long hole when installing. ●The brake and swivel lock cannot be installed on the same caster.
