SUGATSUNE (200133377) SUG-8-806R-PSE Heavy Duty Caster SUG-8-806R-PSE 1 pc

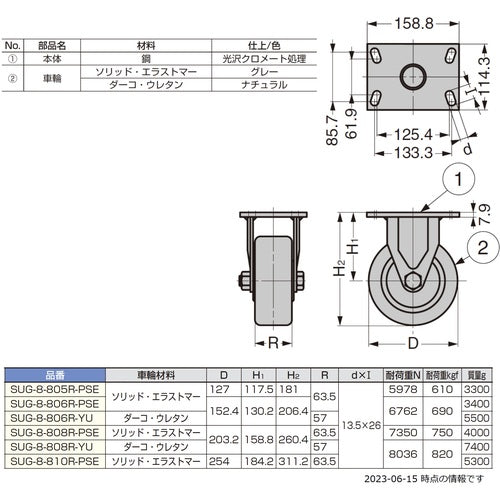

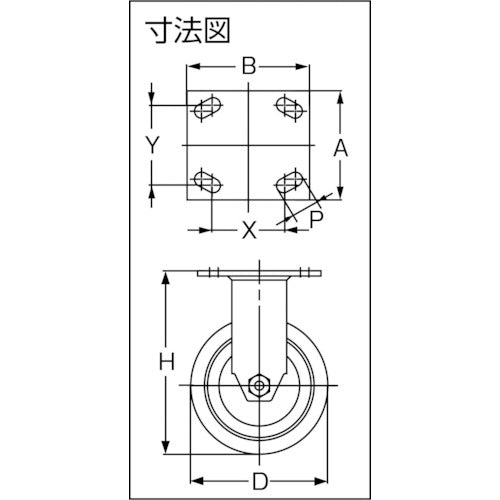

Catalog number: SUG-8-806R-PSE Features: *Ergonomic design with low starting resistance and rolling resistance. *Double ball bearing system for good rotation even under load. *Hardening treatment is applied to the rotating parts to reduce wear on contact parts and enable long-term use. *Seals are applied to the rotating parts and grease is filled in the axles. Applications: ●Heavy-duty transport equipment ●Large machinery equipment ●Inside factories, trolleys, carts, etc. Specifications: ●Wheel diameter D (mm): 152.4 ●Type: Fixed ●Allowable load (daN): 676.2 ●Allowable load (kgf): 690 ●Wheel width (mm): 63.5 ●Mounting height H (mm): 206.4 ●Mounting base A (mm): 114.3 ●Mounting base B (mm): 158.8 ●Mounting pitch X (mm): 125.4-133.3 ●Mounting pitch Y (mm): 61.9-85.7 ●Mounting hole diameter P (mm): 13.5 x 26 ●Plate type ●Fixed type ●Mounting hole diameter P: 13.5 x 26mm Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Glossy chromate treatment ●Wheels: Solid elastomer (SE)
