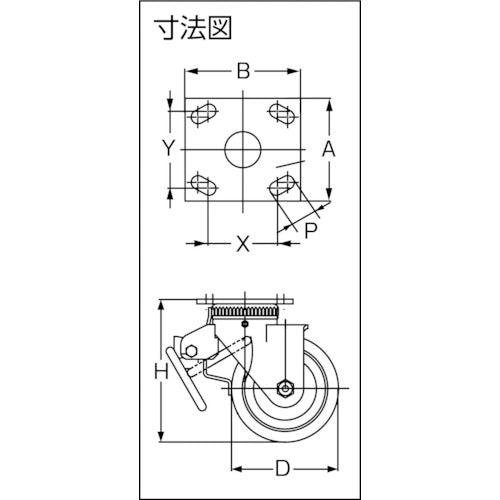

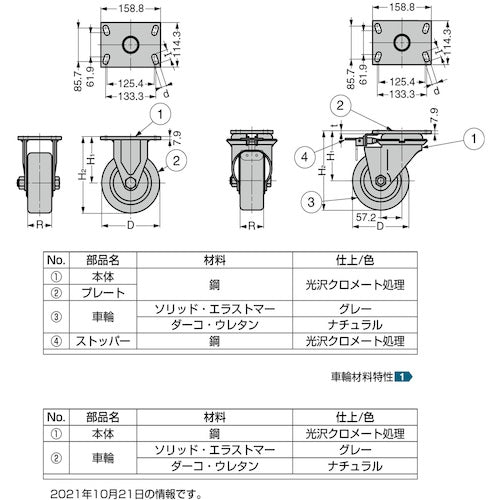

Catalog number: SUG-8-810B-PSE Features: *Ergonomic design with low starting resistance and rolling resistance. *Double ball bearing system for good rotation even under load. *Hardening treatment is applied to the rotating parts to reduce wear on contact parts and enable long-term use. *Seals are applied to the rotating parts and grease is filled in the axles. Applications: ●Heavy-duty transport equipment ●Large machinery equipment ●Inside factories, trolleys, carts, etc. Specifications: ●Wheel diameter D (mm): 254 ●Type: Swivel (with stopper) ●Allowable load (daN): 803.6 ●Allowable load (kgf): 820 ●Wheel width (mm): 63.5 ●Mounting height H (mm): 311.2 ●Mounting seat A (mm): 114.3 ●Mounting seat B (mm): 158.8 ●Mounting pitch X (mm): 125.4-133.3 ●Mounting pitch Y (mm): 61.9-85.7 ●Mounting hole diameter P (mm): 13.5 x 26 ●Plate type ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Glossy chromate treatment ●Wheels: Solid elastomer (SE) Caution: ●When installing with a brake, use the outside of the long hole. ●Brakes and swivel locks cannot be installed on the same caster.
