SUGATSUNE (200139486) SUG-31-75-PSE Heavy Duty Caster (Darco Caster) SUG-31-75-PSE 1 piece

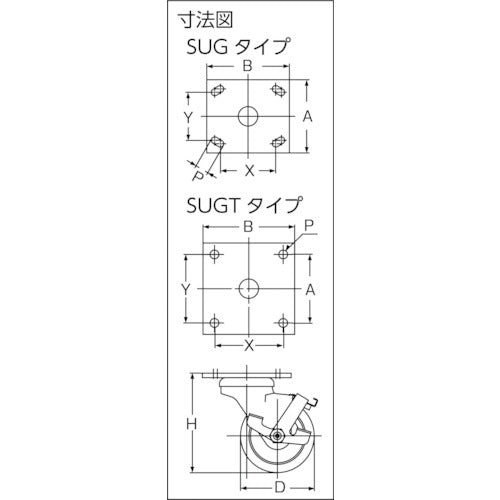

Catalog number: SUG-31-75-PSE Features: * Quiet and smooth maneuverability, easy to operate with little force. * Ergonomic design with low starting resistance and rolling resistance. * Double ball bearing system for good rotation even under load. Specifications: ● Wheel diameter D (mm): 127 ● Type: Free-wheeling ● Allowable load (daN): 264.6 ● Allowable load (kgf): 270 ● Wheel width (mm): 34.9 ● Mounting height H (mm): 168.3 ● Mounting seat A (mm): 101.6 ● Mounting seat B (mm): 114.3 ● Mounting pitch X (mm): 76.2-92.1 ● Mounting pitch Y (mm): 66.7-76.2 ● Mounting hole diameter P (mm): 19.6 x 10.3 ● Plate type ● Free-wheeling Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Glossy chrome plating finish ● Wheels: Solid elastomer (with steel wheel cover)
