SUGATSUNE (200139498) SUG-31-404B-PSE Heavy Duty Caster (Darco Caster) SUG-31-404B-PSE 1 pc

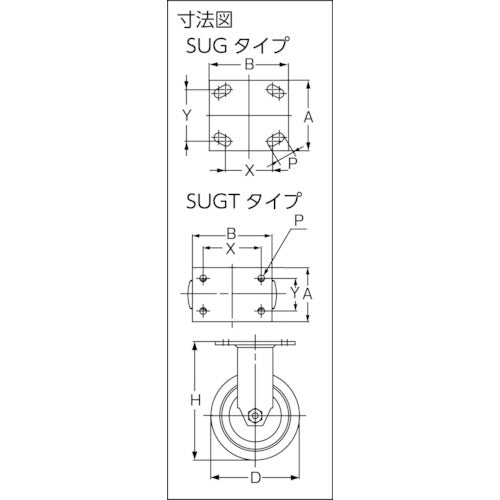

Catalog number: SUG-31-404B-PSE Features: * Quiet and smooth maneuverability, easy to operate with little force. * Ergonomic design with low starting resistance and rolling resistance. * Double ball bearing system for good rotation even under load. Uses: ● Heavy-duty transport equipment Specifications: ● Wheel diameter D (mm): 101.6 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 392 ● Allowable load (kgf): 400 ● Wheel width (mm): 51.6 ● Mounting height H (mm): 142.9 ● Mounting seat A (mm): 101.6 ● Mounting seat B (mm): 114.3 ● Mounting pitch X (mm): 76.2-92.1 ● Mounting pitch Y (mm): 66.7-76.2 ● Mounting hole diameter P (mm): 10.3 x 19.6 ● Plate type ● Free-wheeling (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Glossy chromate treatment ● Wheels: Solid elastomer (with steel wheel cover)
