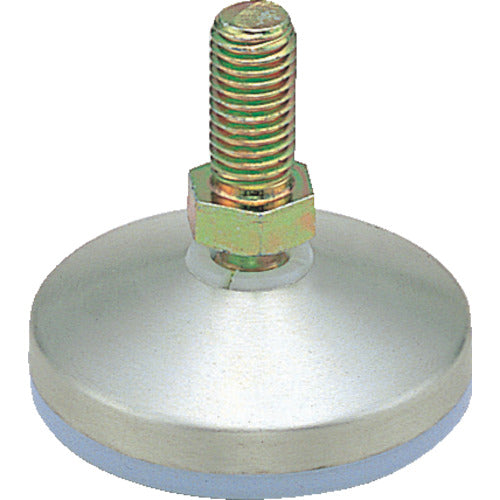

SUGATSUNE (200140027) RP-70M14-G Rotary Plane RP-70M14 1 piece

SUGATSUNE (200140027) RP-70M14-G Rotary Plane RP-70M14 1 piece

JAN：4510932001540 　
Adjuster Adjuster bolt (swivel type) Machinery Parts Mechatronics Parts Sugatsune Industry Parts
¥1,426
¥1,426
Sale Sold out
Shipping calculated at checkout.

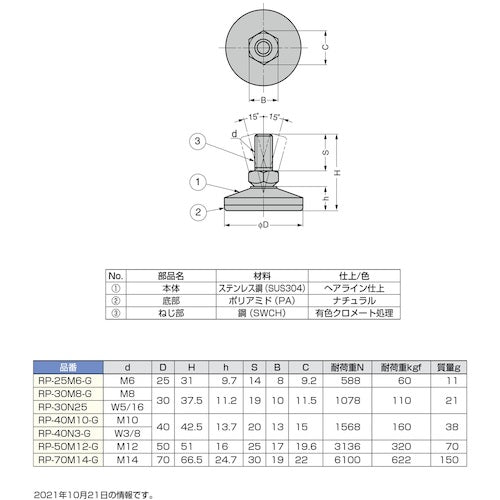

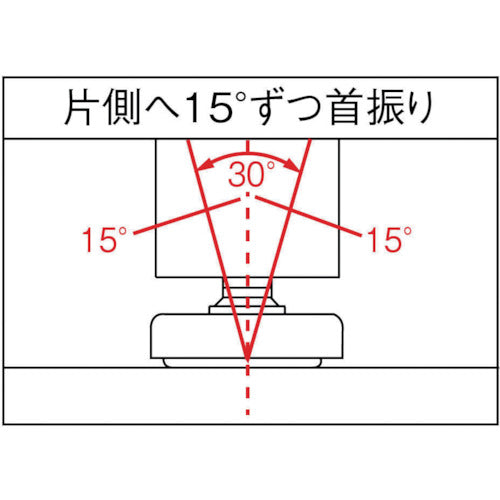

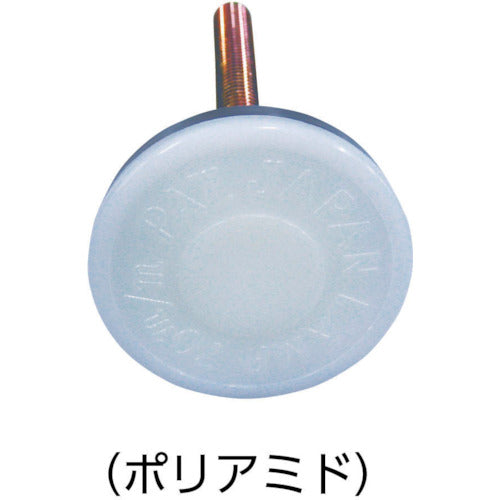

Catalog number: RP-70M14 Features: ●Even if the legs are angled or the floor surface is inclined, it can maintain a horizontal position. Applications: ●Measuring instruments, cabinets, vending machines. Specifications: ●Allowable load (kgf): 622 ●Screw dimensions: M14 ●Screw length (mm): 30 ●Total height (mm): 66.5 ●Base diameter (mm): 70 ●Color: Silver ●Oscillation angle (°): 15 ●Allowable load (daN): 610 ●Oscillation angle: Approximately 30° Material/Finish: ●Screw: Steel ●Base: Stainless steel (SUS304) ●Bottom: Polyamide (PA)
