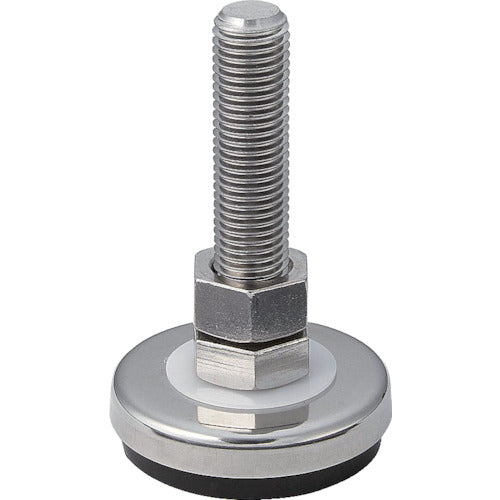

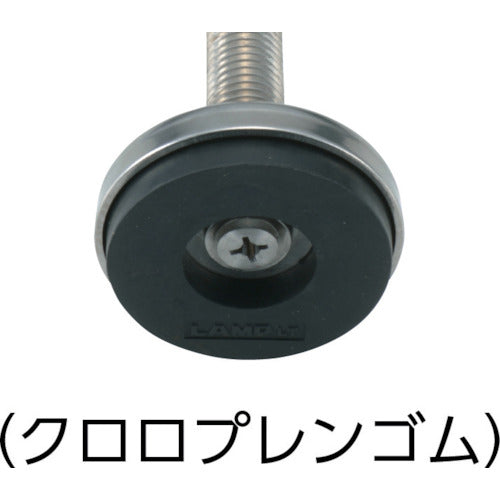

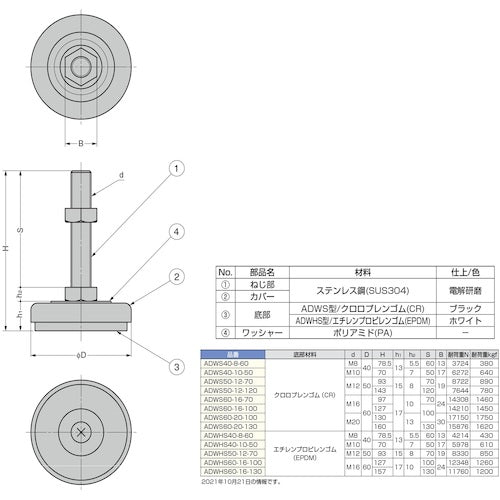

Catalog number: ADWS60-16-70 Features: ●The screw and cover are made of stainless steel and have excellent corrosion resistance. Applications: ●Machine tools, vending machines, conveyors, computer racks, control panels, scientific machines, OA equipment, various fixtures, etc. Specifications: ●Allowable load (kgf): 1460 ●Screw dimensions: M16 ●Screw length (mm): 70 ●Total height (mm): 97.0 ●Base diameter (mm): 60 ●Color: Stainless steel ●Width (mm): 60 ●Height (mm): 127 ●Allowable load (N): 13720 ●The bottom material has excellent weather resistance Material/Finish: ●Screw: Stainless steel (SUS304) ●Base: Stainless steel (SUS304) ●Bottom: Chloroprene rubber (CR) Note: ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
