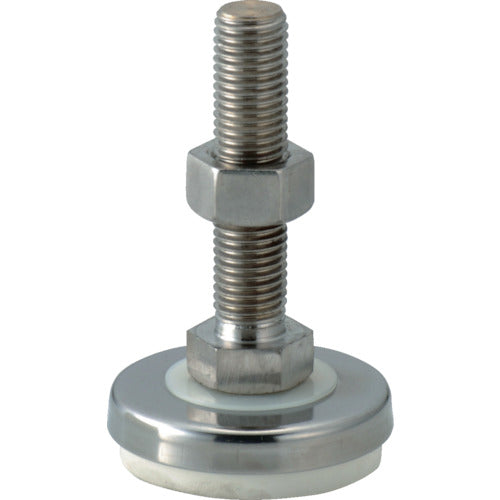

SUGATSUNE (200140627) ADWHS60-16-100 Stainless steel adjuster ADWHS60-16-100 1 piece

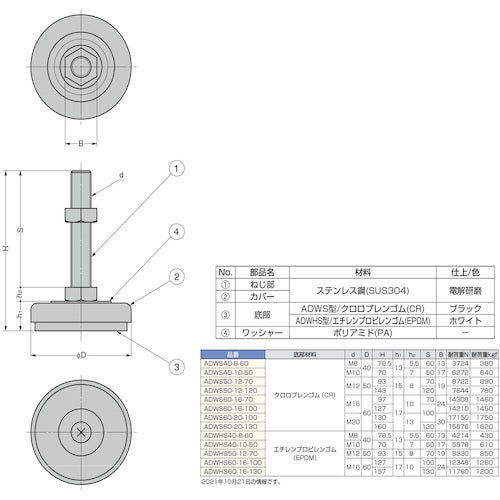

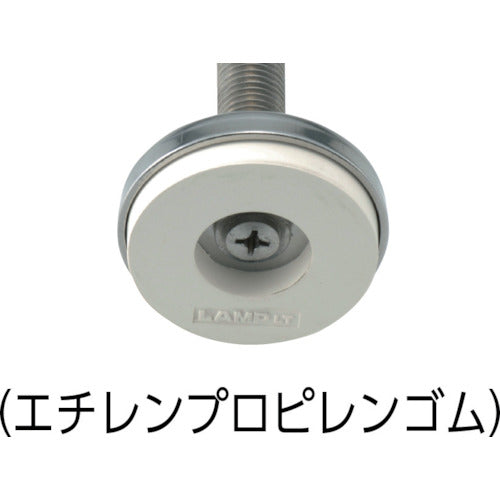

Catalog number: ADWHS60-16-100 Features: ●Screw and cover are made of stainless steel and have excellent corrosion resistance. Applications: ●Machine tools, vending machines, conveyors, computer racks, control panels, scientific and chemical machines, OA equipment, various fixtures, etc. Specifications: ●Allowable load (kgf): 1260 ●Screw dimensions: M16 ●Screw length (mm): 100 ●Total height (mm): 127.0 ●Base diameter (mm): 60 ●Allowable load (N): 13720 ●The bottom material has excellent heat and weather resistance. Material/Finish: ●Screw: Stainless steel (SUS304) ●Base: Stainless steel (SUS304) ●Bottom: Ethylene propylene rubber (EPDM)
