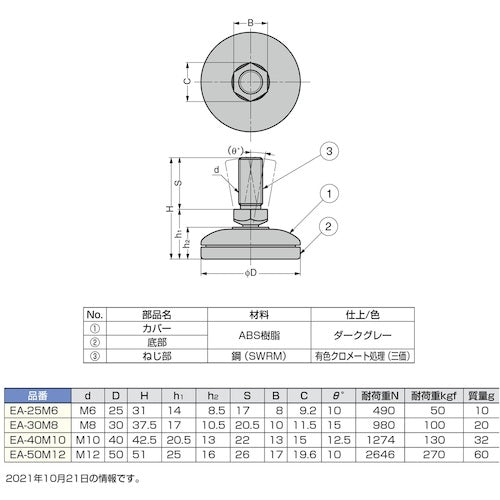

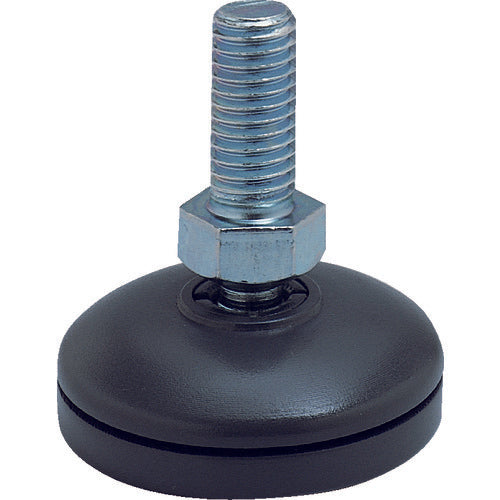

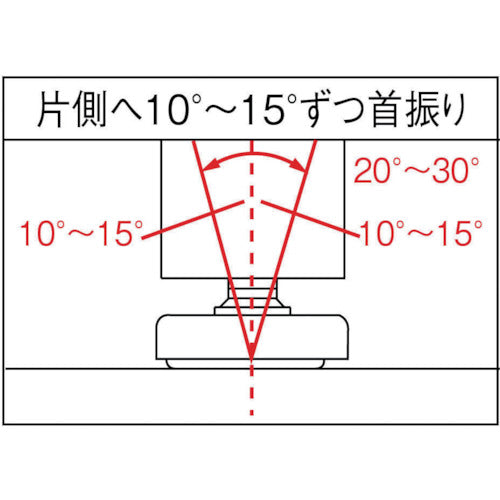

Catalog number: EA-25M6 Features: ● Equipped with a swivel mechanism, it can be kept horizontal even if the legs are angled or the floor is inclined. (The angle varies depending on the product.) ● It can be disassembled into different materials with a flathead screwdriver, so it can be disposed of separately. ● The screw part is trivalent chromate treated. (Hexavalent chromium free) Applications: ● Computer racks, control panels, scientific and chemical machines, office equipment, etc. Specifications: ● Allowable load (kgf): 50 ● Screw dimensions: M6 ● Screw length (mm): 17.0 ● Total height (mm): 31.0 ● Base diameter (mm): 25 ● Swing angle (°): 10 ● Allowable load (daN): 49 ● Swing angle: 20 to 30° Materials/Finish: ● Screw: Steel ● Base: ABS resin ● Bottom: ABS resin
