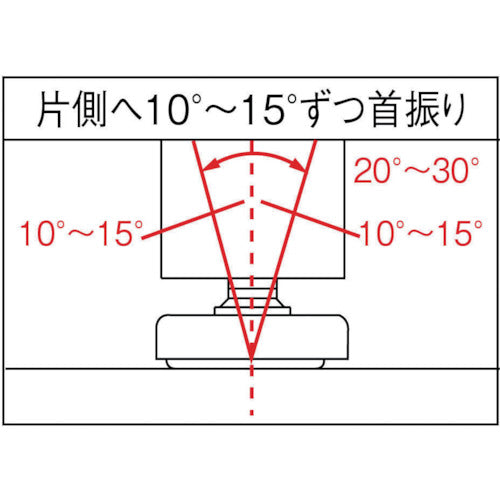

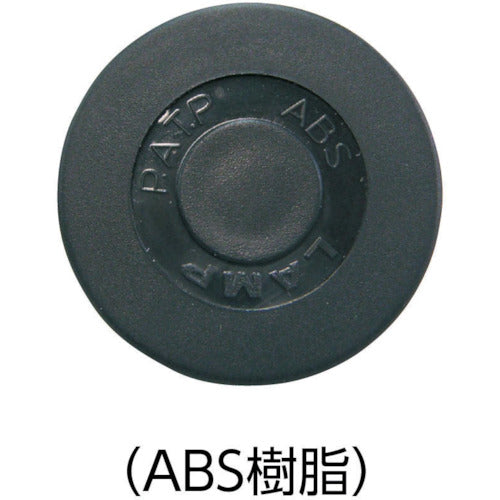

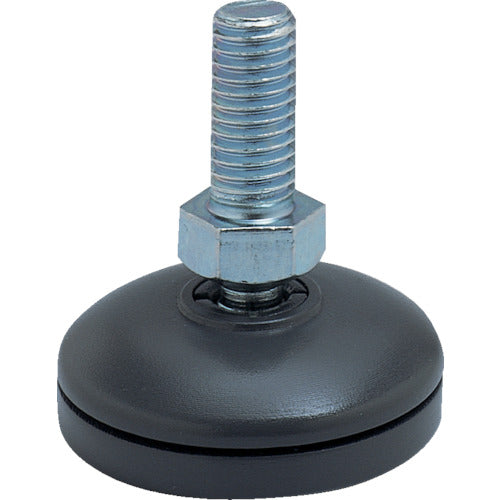

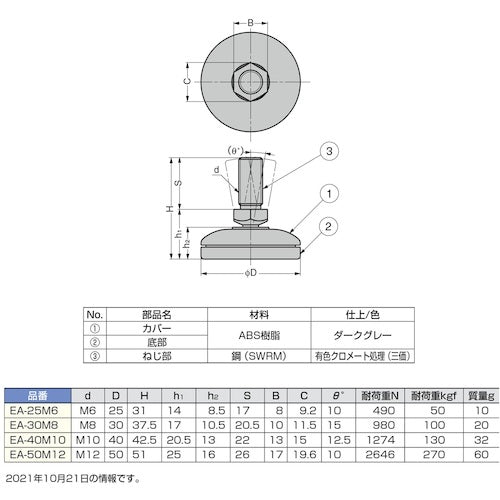

Catalog number: EA-40M10 Features: ● Equipped with a swivel mechanism, it can keep the legs level even if they are angled or the floor is inclined. (The angle varies depending on the product.) ● Can be disassembled into different materials with a flathead screwdriver, allowing for separate disposal. ● The screw part is trivalent chromate treated. (Hexavalent chromium free) Applications: ● Computer racks, control panels, scientific and chemical machines, office equipment, etc. Specifications: ● Allowable load (kgf): 130 ● Screw dimensions: M10 ● Screw length (mm): 22.0 ● Total height (mm): 42.5 ● Base diameter (mm): 40 ● Swing angle (°): 12.5 ● Allowable load (daN): 127 ● Swing angle: 20 to 30° Materials/Finish: ● Screw: Steel ● Base: ABS resin ● Bottom: ABS resin
