スガツネ工業(株)

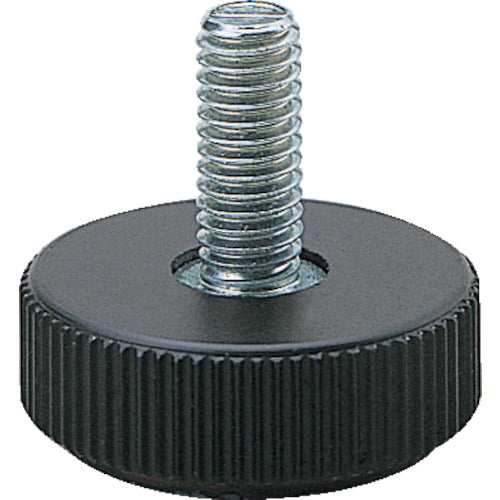

SUGATSUNE (200141305) MKR-N50N3 Adjuster MKR-N50N3 1 piece
SUGATSUNE (200141305) MKR-N50N3 Adjuster MKR-N50N3 1 piece
Regular price
¥718
Regular price
Sale price
¥718
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

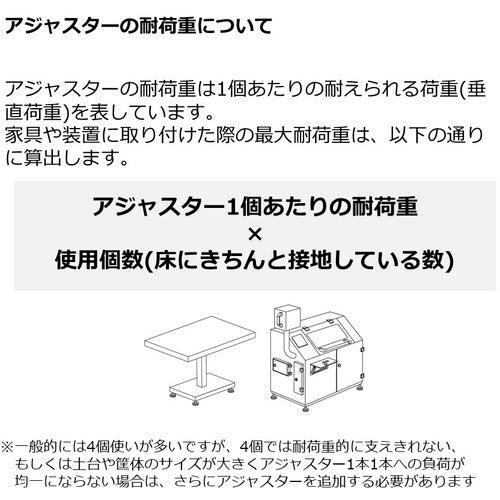

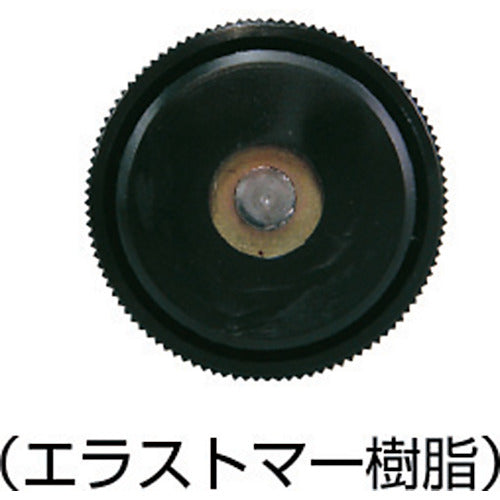

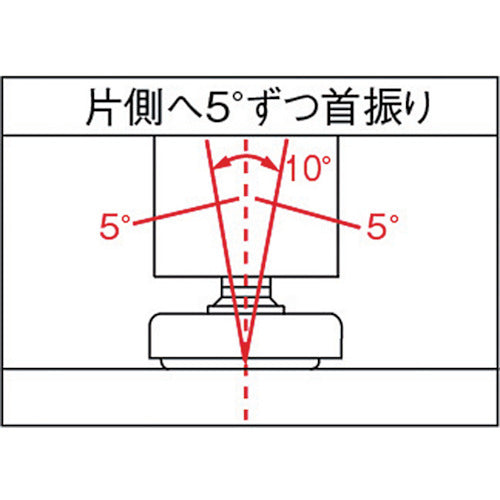

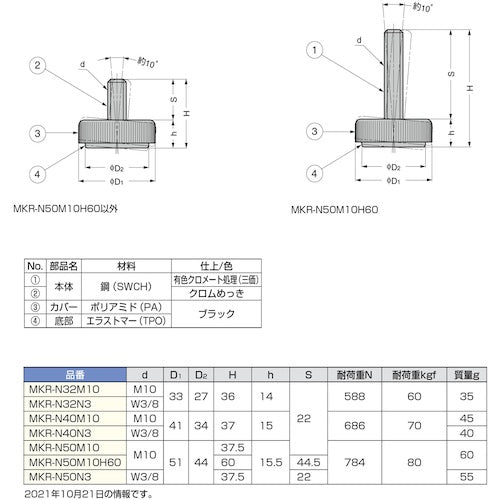

Catalog number: MKR-N50N3 Features: ●The 10° swivel mechanism keeps the unit level even on distorted floors. ●The double structure of the main body and base allows you to adjust the height while keeping the base on the ground. Applications: ●Measuring instruments and steel cabinets. Specifications: ●Allowable load (kgf): 80 ●Screw dimensions: W3/8 ●Screw length (mm): 22 ●Total height (mm): 37.5 ●Base diameter (mm): 51 ●Color: Black (base) ●Swivel angle (°): Approx. 10 ●Allowable load (daN): 78 ●Swivel angle: Approx. 10° Materials/Finish: ●Screw: Steel ●Base: Polyamide (PA) ●Bottom: Elastomer resin
