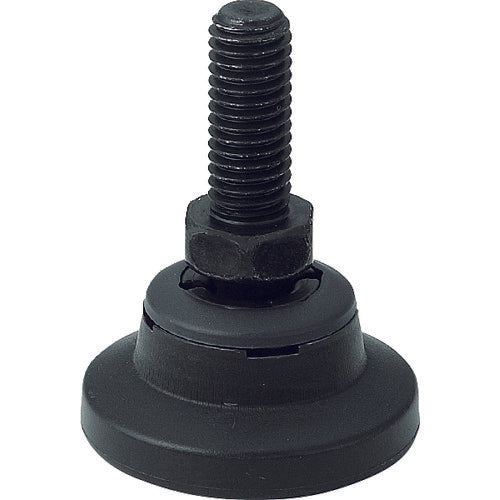

SUGATSUNE (200142506) SG-32M8 System Foot SG-32M8 1 piece

Catalog number: SG-32M8 Features: ●The screw part has a 20° swivel mechanism, so it can remain horizontal even if the legs are angled or the floor is inclined. Applications: ●Measuring equipment, measuring instruments, etc. Specifications: ●Allowable load (kgf): 120 ●Screw dimensions: M8 ●Screw length (mm): 20 ●Total height (mm): 42.0 ●Base diameter (mm): 32 ●Color: Dark gray ●Swivel angle (°): Approx. 20 ●Load capacity (N): 1176 ●Material: Steel (screw part) / Polyacetal (bottom) ●Load capacity: 1176N (120kgf) Material/Finish: ●Screw part: Steel (SWCH) ●Stopper cap: Polyamide (PA) ●Bottom: Polyacetal (POM)
