SUGATSUNE 230-26/9T P4W30T (160-014-793) 230-26/9T P4W30T 1 piece

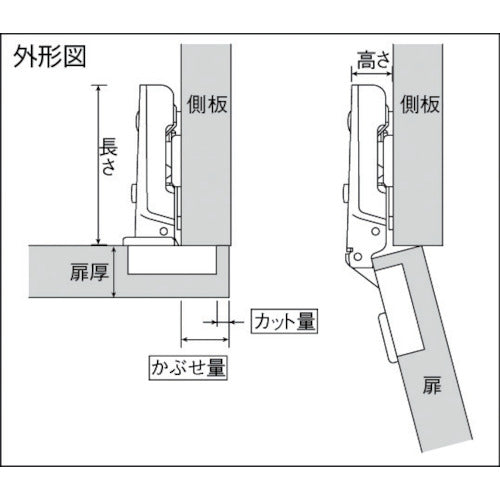

Catalog number: 230-26/9T P4W30T Features: ●One-touch installation method that allows you to freely adjust the order in which the doors are hung. ●Can be attached and detached on the door without using tools on-site. Applications: ●Woodworking cabinets. ●Kitchen and washroom cabinets. ●Small vending machines. ●Continuous doors and enclosures embedded in walls. Specifications: ●Opening angle (°): 105° ●Applicable door thickness (mm): 15-20 ●Wood screw size (mm) diameter x length ●Overlay (mm): 5-9 ●Recommended door thickness (mm): 15-20 ●Length (mm): 64 ●Height (mm): 19.5 ●Mounting base (mounting plate) included ●Mounting cup diameter (mm): 35 ●Depth of recess (mm): 11 ●Overlay is when the cut is 5 mm Material/Finish: ●Steel ●Finish: Nickel-plated finish Note: ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
