SUGATSUNE H230-C26/0T P6WT (160-014-796) H230-C26/0T P6WT 1 piece

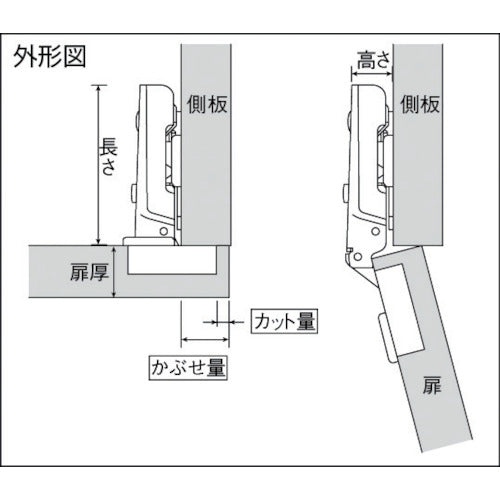

Catalog number: H230-C26/0T P6WT Features: ●One-touch installation method that allows you to freely adjust the order in which the doors are hung. ●Can be attached and detached on the door without using tools on-site. Applications: ●Woodworking cabinets. ●Kitchen and washroom cabinets. ●Small vending machines. ●Continuous doors and enclosures embedded in walls. Specifications: ●Opening angle (°): 93° ●Applicable door thickness (mm): 18-30 ●Overhang (mm): Inset ●Catch: Yes ●Recommended door thickness (mm): 18-30 ●Length (mm): 69 ●Height (mm): 19.5 ●Mounting base (mounting plate) included ●Mounting cup diameter (mm): 40 ●Depth of recess (mm): 15 ●Overhang is when cut amount is 7 mm Material/Finish: ●Steel ●Finish: Nickel-plated finish Note: ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
