Suiden Exhaust Fan, Large Fan, Blade Diameter 400mm, Three Phase 200V, SJF-408, 1 Unit

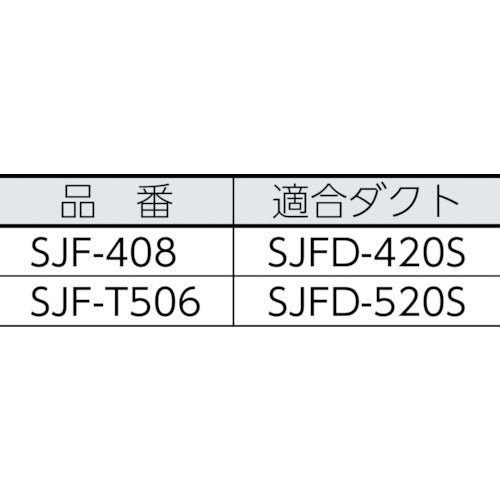

Catalogue number: SJF-408 Features: ●Large air volume type. ●The "bell mouth" is removable. ●The separately sold duct can be installed on either the intake or exhaust side. Applications: ●Exhaust of welding fumes in shipbuilding, steel, and canning factories. ●For duct ventilation in factories, livestock barns, etc. that require a large air volume. ●Exhaust of welding fumes and oil smoke. ●Supplies cool air as a ventilation fan without the need for ductwork. ●Exhaust of welding fumes in shipbuilding, steel, and canning factories. Specifications: ● Power supply (V): Three-phase 200 ● Air volume (m3/min) 50Hz: 78 ● Air volume (m3/min) 60Hz: 91 ● Compatible duct diameter (mm): 420 ● Noise level (dB(A)) 50/60Hz: 76.5/81 ● Blade diameter (mm): 400 ● Number of fan blades (pieces): 8 ● Output (kW) (50/60Hz): 0.42/0.6 ● Standard power consumption fee (50Hz): 5.67 yen /h●Compatible duct: SJFD-420S●Power consumption (W) (50/60Hz): 420/600●External dimensions (mm) width: 475●External dimensions (mm) depth: 350●External dimensions (mm) height: 522●Standard power consumption fee (60Hz): 8.1 yen/h●Power cord: 0.75 [MM2] x 4 core x 0.6 m●Compatible with 50/60Hz●Fan outer diameter: 400 mm●Can be customized to accommodate different voltages from a single unit Caution: ●Do not inhale explosive gases or dust. ●Duct sold separately
