Suiden Portable exhaust fan, blade diameter 288mm, three-phase 200V SJF-300RS-3, 1 unit

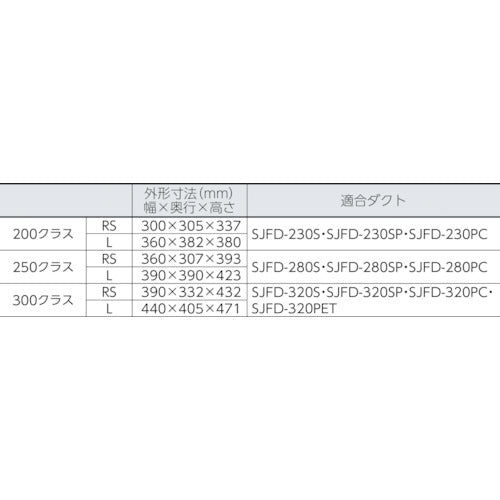

Catalog number: SJF-300RS-3 Features: ● Equipped with a resin bell mouth that smooths the air flow, realizing efficient ventilation. ● The safety guard is finger-tested for high safety. ● Comes with a hand grip for easy carrying, and can be used in a variety of locations. Applications: ● Prevents oxygen deficiency and suffocation accidents. ● Provides cool air as a ventilation fan without the need for ductwork. ● Exhausts welding and fumes from shipbuilding, steel, and canning factories. Specifications: ● Power supply (V): Three-phase 200 ● Air volume (m3/min) 50Hz: 50 ● Air volume (m3/min) 60Hz: 58 ● Suitable duct diameter (mm): 320 ● Noise level (dB(A)) 50/60Hz: 80.0/83.0 ● Blade diameter (mm): 288 ● Number of fan blades (pieces): 4 ● Output (kW) (50/60Hz): 0.38/0.52 ● Standard power consumption fee (50Hz): 5.13 yen/h ● Output Power (W): 250 ● Rated current (A): 3 ● External dimensions (mm) depth: 332 ● External dimensions (mm) width: 390 ● Power consumption (W) (50/60Hz): 380/520 ● Standard power consumption fee (60Hz): 7.02 yen/h ● External dimensions (mm) height: 432 ● Power cord length: 2m ● Compatible with 50/60Hz ● Operating current (A): 2.1/2.7 ● Maximum static pressure (Pa): 215/280 ● Can be customized to accommodate different voltages from a single unit Material/Finish: ● Blade: Resin
